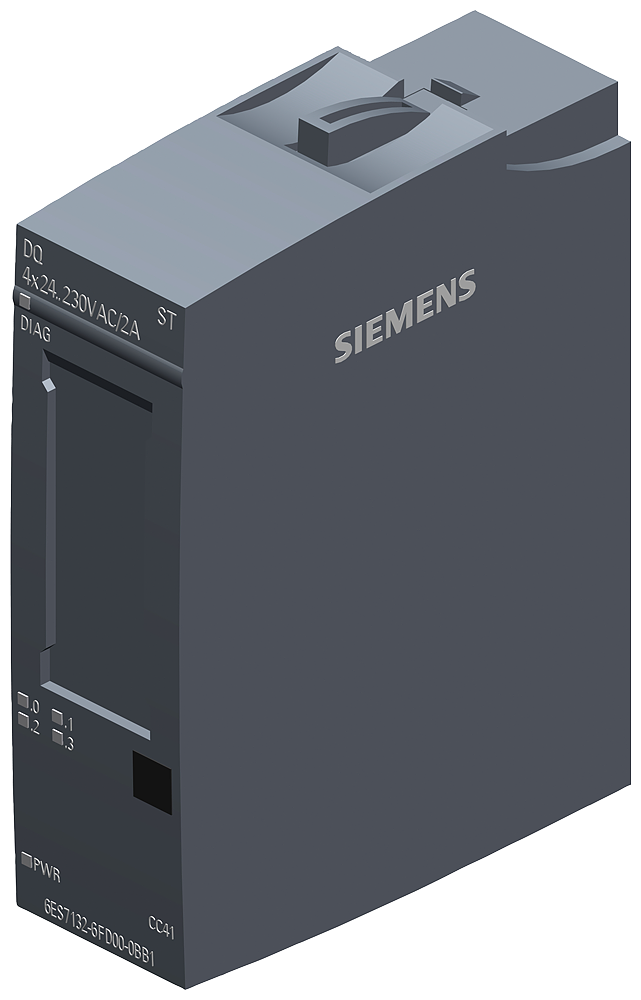

SIMATIC ET 200SP DQ 4x24 ... 230 V AC/2 A ST PU 10
SKU: 6ES7132-6FD00-2BB1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, digital output module with DQ 4x 24..230V AC/2A standard.
Pack size: 10 pieces; suited for BU type B1.
Colour code: CC41.
Module diagnostics.
General information:
Product type designation: DQ 4x24 ... 230 V AC/2 A ST.
HW functional status: From FS05.
Firmware version: V1.0.
FW update possible: Yes.
usable BaseUnits: BU type B1.
Colour code for module-specific colour identification plate: CC41.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: No.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V13 / V13.
STEP 7 configurable/integrated from version: V5.5 SP3 /.
PROFIBUS from GSD version/GSD revision: GSD Revision 5.
PROFINET from GSD version/GSD revision: GSDML V2.3.
Operating mode:
DQ: Yes.
DQ with energy-saving function: No.
PWM: No.
Oversampling: No.
MSO: No.
Supply voltage:
Rated value (AC): 230 V.
permissible range, lower limit (AC): 20.4 V.
permissible range, upper limit (AC): 264 V.
Input current:
Current consumption (rated value): 11.5 mA.
output voltage / header:
Rated value (AC): 230 V; 24V AC to 230V AC.
Power loss:
Power loss, typ.: 9 W; Active power, load voltage 230 V, all outputs loaded with 2 A, 50 Hz.
Address area:
Address space per module:
Address space per module, max.: 1 byte; + 1 byte for QI information.
Inputs: 1 byte; With QI.
Outputs: 1 byte.
Hardware configuration:
Automatic encoding:
Type of mechanical coding element: type C.
Selection of BaseUnit for connection variants:
1-wire connection: BU type B1.
2-wire connection: BU type B1.
3-wire connection: BU type B1.
4-wire connection: BU type B1 + potential distributor module.
Buy currently uses Select Automation shop pricing and checkout.
Digital outputs:
Type of digital output: Triac with zero point detection.
Number of digital outputs: 4.
Current sinking: No.
Current sourcing: Yes.
Digital outputs, parameterizable: No.
Short-circuit protection: No; When using BU type B1, a miniature, quick-response fuse with 10 A tripping current must be provided.
Controlling a digital input: Yes.
Size of motor starters according to NEMA, max.: 5.
Switching capacity of the outputs:
with resistive load, max.: 2 A.
on lamp load, max.: 100 W.
Output voltage:
for signal "1", min.: 20.4 V.
Output current:
for signal "1" rated value: 2 A.
for signal "1" permissible range, min.: 10 mA.
for signal "1" permissible range, max.: 2 A.
for signal "0" residual current, max.: 460 µA.
Output delay with resistive load:
"0" to "1", max.: 10 ms.
"1" to "0", max.: 10 ms.
Parallel switching of two outputs:
for logic links: No.
for uprating: No.
for redundant control of a load: Yes.
Switching frequency:
with resistive load, max.: 10 Hz.
with inductive load, max.: 0.5 Hz; Higher frequencies are possible, see Equipment Manual / Product Information.
on lamp load, max.: 1 Hz.
Total current of the outputs:
Current per channel, max.: 2 A.
Current per module, max.: 8 A.
Total current of the outputs (per module):
horizontal installation:
up to 40 °C, max.: 8 A.
up to 50 °C, max.: 6 A.
up to 60 °C, max.: 4 A.
vertical installation:
up to 30 °C, max.: 8 A.
up to 40 °C, max.: 6 A.
up to 50 °C, max.: 4 A.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 600 m.
Interrupts/diagnostics/status information:
Diagnostics function: No.
Substitute values connectable: Yes.
Alarms:
Diagnostic alarm: No.
Diagnoses:
Monitoring the supply voltage: No.
Wire-break: No.
Short-circuit: No.
Group error: Yes.
Diagnostics indication LED:
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED.
Channel status display: Yes; green LED.
for channel diagnostics: No.
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
between the channels and the power supply of the electronics: No.
Isolation:
Isolation tested with: 2 545 V DC/2 s (routine test).
Standards, approvals, certificates:
Suitable for safety functions: No.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 2 000 m; On request: Installation altitudes greater than 2 000 m.
Dimensions:
Width: 20 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 50 g.
