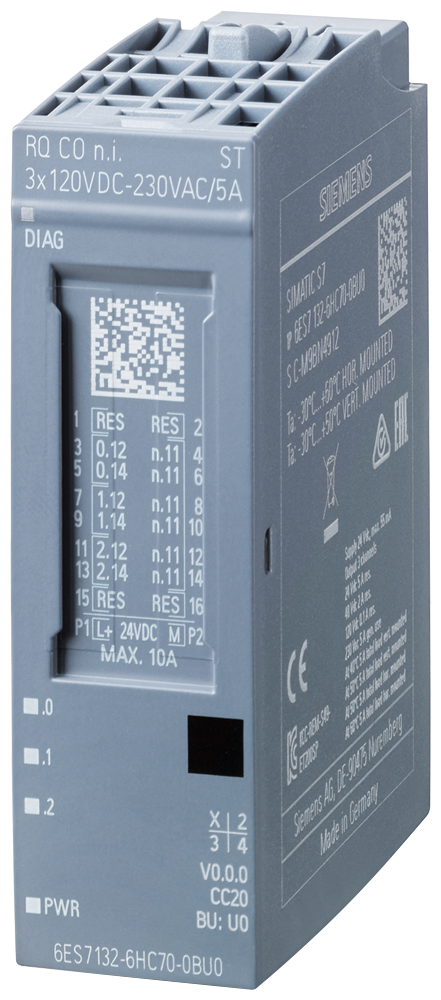

SIMATIC ET 200SP RQ 3x120VDC-230VAC/5A CO n.i. ST Changeover contact
SKU: 6ES7132-6HC70-0BU0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP relay module with RQ COni 3x120VDC..230VAC/5A ST.
Three CO interactions are not isolated.
Packing unit: One unit.
Suitable for BU type U0.
Colour code: CC20.
Substitute value output.
Module diagnostics for supply voltage.
General information:
Product type designation: RQ 3x120VDC-230VAC/5A CO n.i. ST.
Firmware version: V0.0.
FW update possible: No.
usable BaseUnits: BU type U0.
Colour code for module-specific colour identification plate: CC20.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: No.
Engineering with:
PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher.
Supply voltage:
Rated value (AC): 24 V.
permissible range, lower limit (AC): 19.2 V.
permissible range, upper limit (AC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption (rated value): 40 mA; without load.
Current consumption, max.: 55 mA.
output voltage / header:
Rated value (AC): 230 V.
Power loss:
Power loss, typ.: 1.4 W.
Address area:
Address space per module:
Inputs: 1 byte; + 1 byte for QI information.
Outputs: 1 byte.
Hardware configuration:
Automatic encoding:
Automatic encoding: Yes.
Mechanical coding element: Yes.
Type of mechanical coding element: type C.
Selection of BaseUnit for connection variants:
2-wire connection: BU type U0.
3-wire connection: BU type U0.
Buy currently uses Select Automation shop pricing and checkout.
Digital outputs:
Type of digital output: Relays.
Number of digital outputs: 3.
Current sinking: Yes.
Current sourcing: Yes
Digital outputs, parameterizable: Yes.
Short-circuit protection: No.
Switching capacity of the outputs:
with resistive load, max.: 5 A; for an additional description, see the Technical Data in the Equipment Manual.
with inductive load, max.: 2 A; for an additional description, see the Technical Data in the Equipment Manual.
Parallel switching of two outputs:
for logic links: Yes.
for uprating: No.
for redundant control of a load: Yes.
Switching frequency:
with resistive load, max.: 2 Hz.
with inductive load, max.: 0.5 Hz.
on lamp load, max.: 2 Hz.
Total current of the outputs:
Current per channel, max.: 5 A.
Current per module, max.: 5 A.
Total current of the outputs (per module):
horizontal installation:
up to 50 °C, max.: 5 A.
up to 60 °C, max.: 5 A.
vertical installation:
up to 40 °C, max.: 5 A.
up to 50 °C, max.: 5 A.
Relay outputs:
Number of relay outputs: 3; Changeover contact, non-floating.
Rated supply voltage of relay coil L+ (DC): 24 V.
Current consumption of relays (coil current of all relays), max.: 40 mA.
external protection for relay outputs: yes, with miniature fuse max. 6.3 A tripping current, quick-response tripping characteristic and 1 500 A breaking capacity.
Number of operating cycles, max.: 1 000 000; see additional description in the manual.
Switching capacity of contacts:
with inductive load, max.: 2 A; see additional description in the manual.
with resistive load, max.: 5 A; see additional description in the manual.
Thermal continuous current, max.: 5 A; Max. 1 385 VA, 150 W.
Switching current, min.: 10 mA; 5 V DC.
Rated switching voltage (DC): 24 V DC to 120 V DC.
Rated switching voltage (AC): 24V AC to 230V AC.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 200 m.
Interrupts/diagnostics/status information:
Diagnostics function: Yes.
Substitute values connectable: Yes.
Alarms:
Diagnostic alarm: Yes.
Diagnoses:
Monitoring the supply voltage: Yes.
Wire-break: No.
Short-circuit: No.
Diagnostics indication LED:
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED.
Channel status display: Yes; green LED.
for channel diagnostics: No.
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
between the channels and the power supply of the electronics: Yes.
Isolation:
Isolation tested with: 2 000 V DC (routine test).
tested with:
between channels and backplane bus/supply voltage: 2 000 V DC (routine test).
between backplane bus and supply voltage: 707 V DC (type test).
Standards, approvals, certificates:
Suitable for safety functions: No.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 2 000 m.
Dimensions:
Width: 20 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 40 g.
