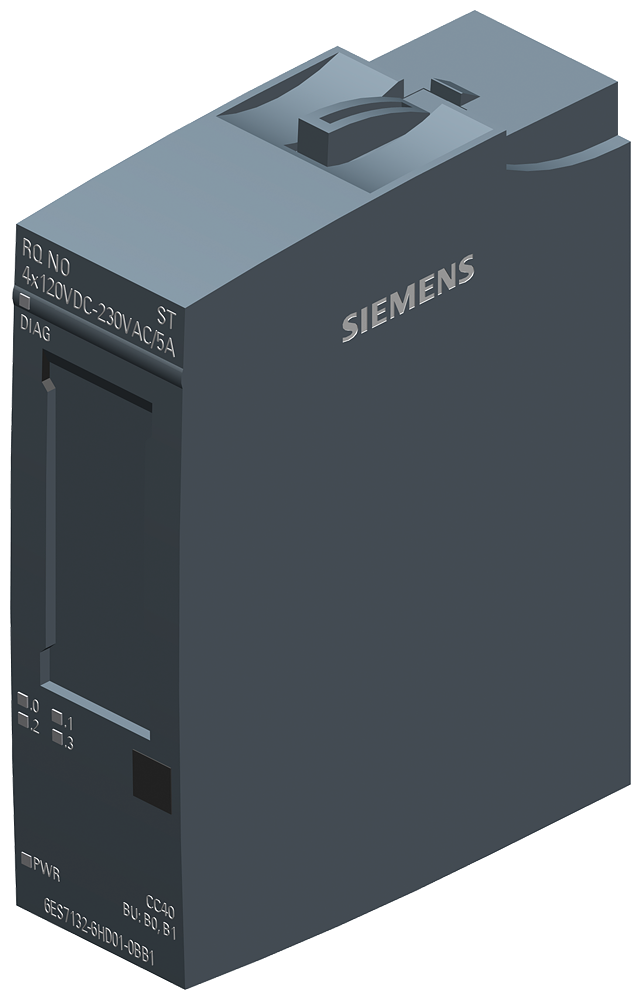

SIMATIC ET 200SP RQ 4x120 VDC ... 230 VAC/5 A NO ST
SKU: 6ES7132-6HD01-0BB1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP relay module, RQ NO 4x 120V DC.230 VAC/5A ST.
There are four contacts: typically open and isolated.
Packing unit: One component, fits BU-types B0 and B1.
Color Code: CC40.
Substitute value output.
Module diagnostics for supply voltage.
General information:
Product type designation: RQ 4x120 VDC ... 230 VAC/5 A NO ST.
HW functional status: From FS02.
Firmware version: V0.0
FW update possible: No.
usable BaseUnits: BU type B0, B1.
Colour code for module-specific colour identification plate: CC40.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: No.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V14.
STEP 7 configurable/integrated from version: V5.5 SP3.
PCS 7 configurable/integrated from version: V8.1 SP1.
PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher.
PROFINET from GSD version/GSD revision: GSDML V2.3.
Operating mode:
DQ: Yes.
DQ with energy-saving function: No
PWM: No.
Oversampling: No.
MSO: No.
Redundancy:
Redundancy capability: Yes.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption, max.: 55 mA; without load.
output voltage / header:
Rated value (AC): 230 V.
Power loss:
Power loss, typ.: 1.5 W.
Buy currently uses Select Automation shop pricing and checkout.
Address area:
Address space per module:
Inputs: + 1 byte for QI information.
Outputs: 1 byte.
Hardware configuration:
Automatic encoding: Yes.
Mechanical coding element: Yes.
Type of mechanical coding element: Type C.
Selection of BaseUnit for connection variants:
2-wire connection: BU type B1.
3-wire connection: BU type B0.
Digital outputs:
Type of digital output: Relays.
Number of digital outputs: 4.
Current sinking: Yes.
Current sourcing: Yes.
Digital outputs, parameterizable: Yes.
Short-circuit protection: No.
Parallel switching of two outputs:
for logic links: Yes.
for uprating: No.
for redundant control of a load: Yes.
Switching frequency:
with resistive load, max.: 2 Hz.
with inductive load (acc. to IEC 60947-5-1, DC13), max.: 0.5 Hz.
with inductive load (acc. to IEC 60947-5-1, AC15), max.: 0.5 Hz.
on lamp load, max.: 2 Hz.
Total current of the outputs:
Current per channel, max.: 5 A.
Current per module, max.: 20 A.
Total current of the outputs:
Current per channel, max.: 5 A.
Current per module, max.: 20 A.
Total current of the outputs (per module):
horizontal installation:
up to 50 °C, max.: 20 A.
up to 60 °C, max.: 16 A.
vertical installation:
up to 40 °C, max.: 20 A.
up to 50 °C, max.: 16 A.
Relay outputs:
Number of relay outputs: 4.
Rated supply voltage of relay coil L+ (DC): 24 V.
Current consumption of relays (coil current of all relays), max.: 40 mA.
external protection for relay outputs: Yes, with miniature fuse max. 6 A tripping current and quick-response tripping characteristic.
Number of operating cycles, max.: 7 000 000; see additional description in the manual.
Switching capacity of contacts:
with inductive load, max.: 2 A; see additional description in the manual.
with resistive load, max.: 5 A; see additional description in the manual.
Thermal continuous current, max.: 5 A; Max. 1 385 VA, 150 W.
Switching current, min.: 100 mA; 5 V DC.
Rated switching voltage (DC): 24 V DC to 120 V DC.
Rated switching voltage (AC): 24V AC to 230V AC.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 200 m.
Interrupts/diagnostics/status information:
Diagnostics function: Yes.
Substitute values connectable: Yes.
Alarms:
Diagnostic alarm: Yes.
Diagnoses:
Monitoring the supply voltage: Yes.
Wire-break: No.
Short-circuit: No.
Diagnostics indication LED:
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED.
Channel status display: Yes; green LED.
for channel diagnostics: No.
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: Yes.
between the channels and backplane bus: Yes.
between the channels and the power supply of the electronics: Yes.
Isolation:
Isolation tested with: 2 500 V DC (type test).
tested with:
between channels and backplane bus/supply voltage: 2 500 V DC.
between backplane bus and supply voltage 707 V DC (type test).
Standards, approvals, certificates:
Suitable for safety functions: No.
Ambient conditions:
Ambient temperature during operation.
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 2 000 m; On request: Installation altitudes greater than 2 000 m.
Dimensions:
Width: 20 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 40 g.
