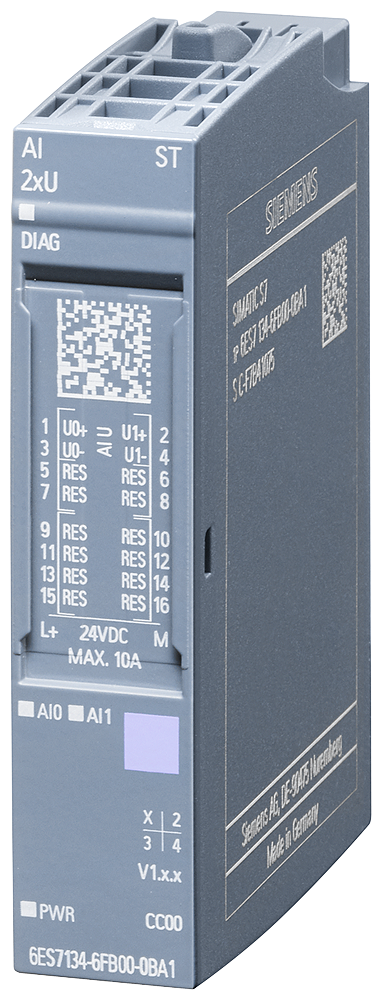

SIMATIC ET 200SP AI 2xU ST
SKU: 6ES7134-6FB00-0BA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP: Analog input module, AI 2xU. Standard Pack quantity: 1 unit; compatible with colour code CC00, module diagnostics, 16 bits; suited for BU types A0 and A1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 37 mA.
Typical power loss: 0.9 W.
Analog inputs:
Number of analog inputs: 2.
For voltage measurement: 2.
Permissible input voltage for voltage input (destruction limit), max: 30 V.
Cycle time (all channels), min: 500 µs.
Input ranges (rated values), voltages:
Input resistance (0 to 10 V): 180 kΩ, 15 bits.
Input resistance (1 V to 5 V): 180 kΩ, 15 bits.
Input resistance (-10 V to +10 V): 180 kΩ, 16-bit incl. sign.
Input resistance (-5 V to +5 V): 180 kΩ, 16-bit incl. sign.
Maximum shielded cable length: 200 m.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS04.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; < 0 °C as of FS04.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
