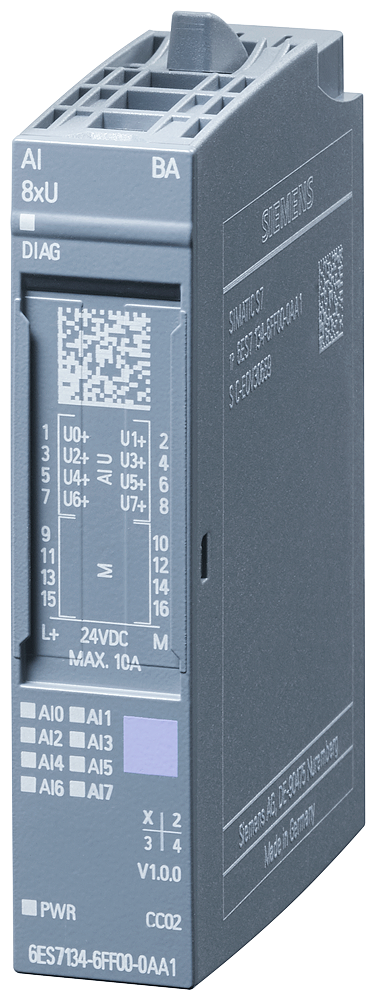

SIMATIC ET 200SP AI 8xU BA
SKU: 6ES7134-6FF00-0AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP: Analog input module, AI 8XU Basic.
Suitable for BU types A0 and A1.
Color code: CC02.
Module diagnostics in 16 bits.
General information:
Product type designation: AI 8xU BA.
HW functional status: from FS21.
Firmware version: V1.0.1.
FW update possible: Yes.
usable BaseUnits: BU type A0, A1.
Color code for module-specific color identification plate: CC02.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: No.
Measuring range scalable: No.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V13 SP1.
STEP 7 configurable/integrated from version: V5.5 SP3 /.
PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher.
PROFINET from GSD version/GSD revision: GSDML V2.3.
Operating mode:
Oversampling: No.
MSI: No.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption, max.: 25 mA.
Power loss:
Power loss, typ.: 0.7 W.
Address area:
Address space per module:
Address space per module, max.: 16 byte.
Hardware configuration:
Automatic encoding: Yes.
Mechanical coding element: Yes.
Type of mechanical coding element: type B.
Selection of BaseUnit for connection variants:
1-wire connection: BU type A0, A1.
2-wire connection: BU type A0, A1.
Analog inputs:
Number of analog inputs: 8; Single-ended.
For voltage measurement: 8.
permissible input voltage for voltage input (destruction limit), max.: 30 V.
Cycle time (all channels), min. 1 ms; per channel.
Input ranges (rated values), voltages:
0 to +10 V: Yes; 15 bit.
Input resistance (0 to 10 V): 100 kΩ.
-10 V to +10 V: Yes; 16 bit incl. sign.
Input resistance (-10 V to +10 V): 100 kΩ.
Cable length:
shielded, max.: 200 m.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C; < 0 °C as of FS04.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C; < 0 °C as of FS04.
vertical installation, max: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 31 g.
