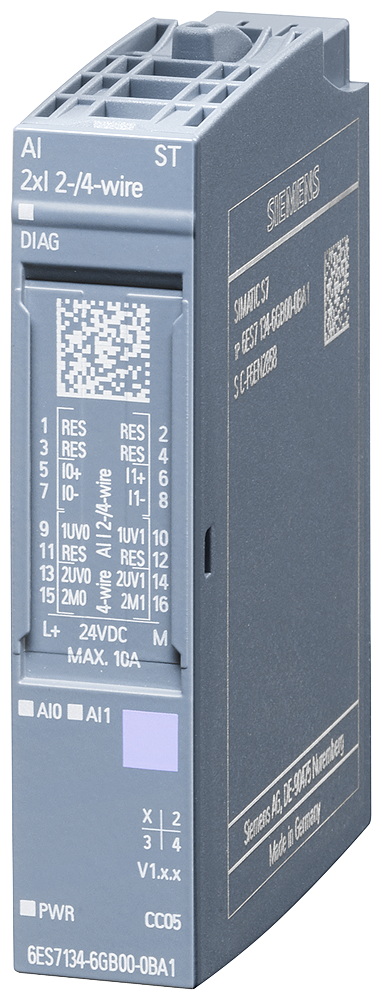

SIMATIC ET 200SP AI 2xI 2-/4-wire ST
SKU: 6ES7134-6GB00-0BA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, Analog input module, AI 2xI 2-/4-wire Standard, Pack quantity: 1 unit, compatible with BU types A0 and A1, colour code CC05, module diagnostics, 16 bits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 45 mA; without sensor supply.
Typical power loss: 1.1 W.
Analog inputs:
Number of analog inputs: 2.
For voltage measurement: 2.
Permissible input current for current input (destruction limit), max.: 50 mA.
Cycle time (all channels), min: 500 µs.
Input ranges (rated values), currents:
Input resistance (0 to 20 mA): 130 Ω; 90 ohms with two wires, 15 bits.
Input resistance (-20 mA to +20 mA): 130 Ω, 16-bit incl. sign.
Input resistance (4 mA to 20 mA): 130 Ω; 90 ohms with two wires, 15 bit.
Maximum shielded cable length: 1 000 m.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS04.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; < 0 °C as of FS04.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
