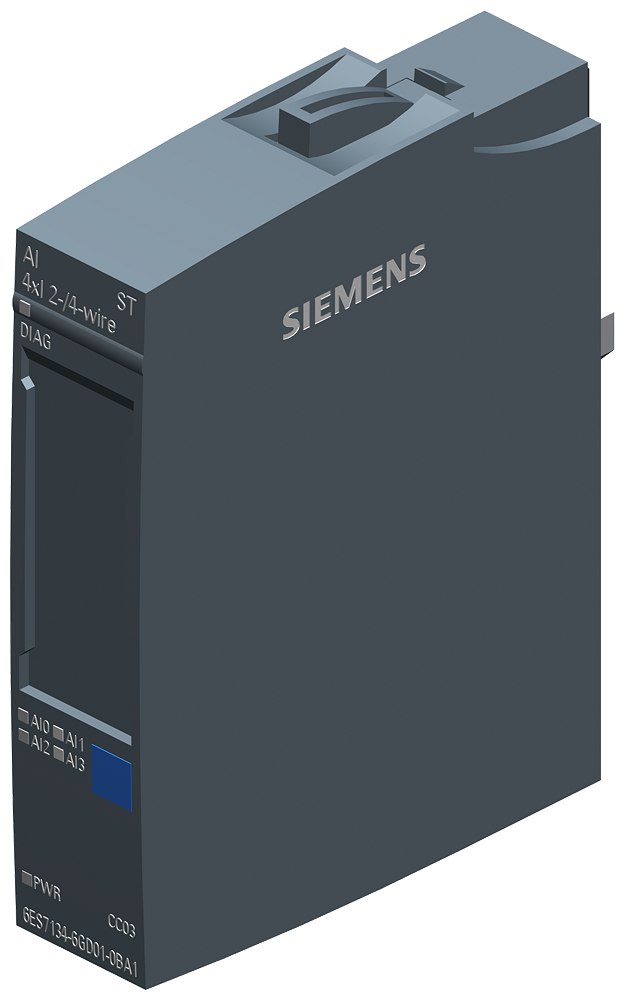

SIMATIC ET 200SP AI 4xI 2-/4-wire ST PU 10

Specifications: Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Input current: Current consumption, max: 37 mA; without sensor supply. Typical power loss: 0.85 W; Without encoder supply voltage. Analog inputs: Number of analog inputs: 4; Differential inputs. Permissible input current for current input (destruction limit), max.: 50 mA. Cycle time (all channels), min: Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels). Input ranges (rated values), currents: Input resistance (0 to 20 mA): 100 Ω; + approx. 0.7 V diode forward voltage in 2-wire operation; 16-bit incl. sign. Input resistance (-20 mA to +20 mA): 100 Ω. Input resistance (4 mA to 20 mA): 100 Ω; + approx. 0.7 V diode forward voltage in 2-wire operation; 15 bit. Maximum shielded cable length: 1 000 m. Isolation tested with 707 V DC (type test). Ambient temperature during operation: Horizontal installation, min: -30 °C; < 0 °C as of FS02. Horizontal installation, max: 60 °C. Vertical installation, min: -30 °C; < 0 °C as of FS02. Vertical installation, max: 50 °C. Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m. Width: 15 mm. Height: 73 mm. Depth: 58 mm.
