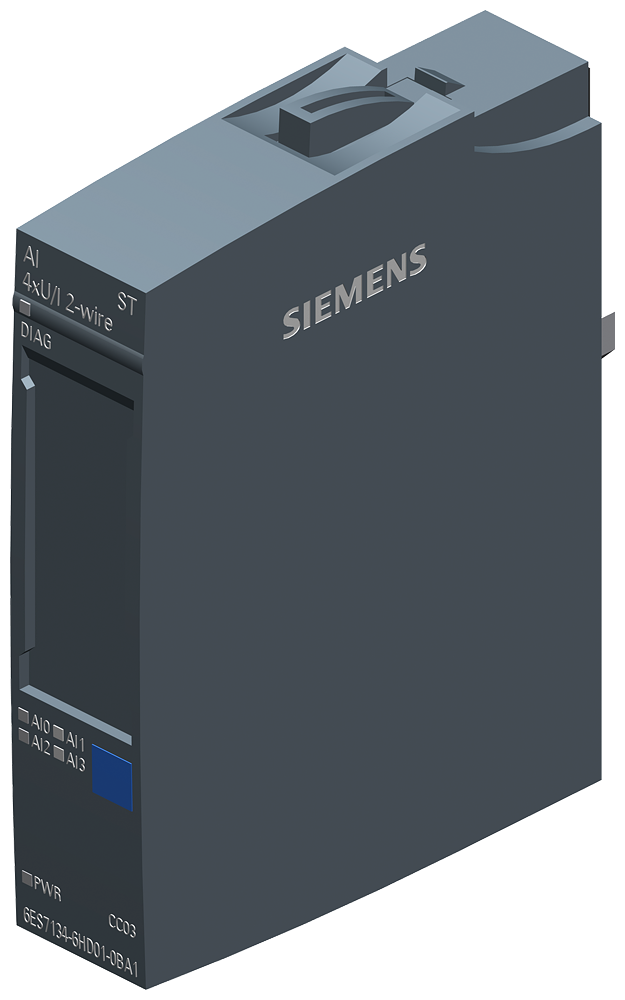

SIMATIC ET 200SP AI 4x U/I 2-wire

Specifications: Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Current consumption, max: 37 mA; without sensor supply. 24 V encoder supply: Short-circuit protection. Output current, max: 20 mA; max. 50 mA per channel for a duration < 10 s. Typical power loss: 0.85 W; Without encoder supply voltage. Analog inputs: Number of analog inputs: 4; Differential inputs. Permissible input voltage for voltage input (destruction limit), max: 30 V. Permissible input current for current input (destruction limit), max: 50 mA. Cycle time (all channels), min: Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels). Input ranges (rated values), voltages: Input resistance (0 to 10 V): 15-bit, 120 k Ω. Input resistance (1 V to 5 V): 15-bit, 120 k Ω. Input resistance (-10 V to +10 V): 16-bit incl. sign, 120 k Ω. Input resistance (-5 V to +5 V): 16-bit incl. sign, 120 k Ω. Input ranges (rated values), currents: Input resistance (0 to 20 mA): 100 Ω; + approx. 0.7 V diode forward voltage; 15 bits. Input resistance (4 mA to 20 mA): 100 Ω; + approx. 0.7 V diode forward voltage; 15 bits. Maximum shielded cable length: 1 000 m; 200 m for voltage measurement. Isolation tested with 707 V DC (type test). Ambient temperature during operation: Horizontal installation, min: -30 °C; < 0 °C as of FS02. Horizontal installation, max: 60 °C. Vertical installation, min: -30 °C; < 0 °C as of FS02. Vertical installation, max: 50 °C. Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m. Width: 15 mm. Height: 73 mm. Depth: 58 mm.
