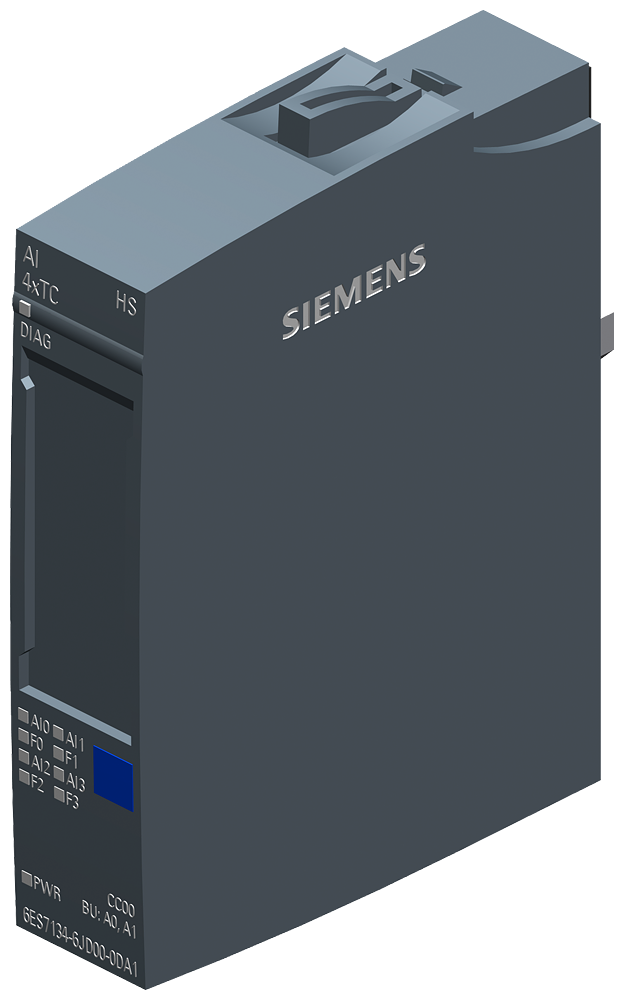

SIMATIC ET 200SP AI 4xTC HS

Specifications: Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Input current: Current consumption (rated value): 37 mA Current consumption, max: 50 mA. Typical power loss: 0.9 W. Analog inputs: Number of analog inputs: 4. Permissible input voltage for voltage input (destruction limit), max: 30 V. Cycle time (all channels), min: 5 MS; Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels). Technical unit for temperature measurement adjustable: °C/°F/K. Input ranges (rated values), voltages: Input resistance (-1 V to +1 V): 1 MΩ, 16-bit incl. sign. Input resistance (-250 mV to +250 mV): 1 MΩ, 16-bit incl. sign. Input resistance (-50 mV to +50 mV): 1 MΩ, 16-bit incl. sign. Input resistance (-80 mV to +80 mV): 1 MΩ, 16-bit incl. sign. Input ranges (rated values), thermocouples: Type B: 1 MΩ, 16-bit incl. sign. Type C: 1 MΩ, 16-bit incl. sign. Type E: 1 MΩ, 16-bit incl. sign. Type J: 1 MΩ, 16-bit incl. sign. Type K: 1 MΩ, 16-bit incl. sign. Type L: 1 MΩ, 16-bit incl. sign. Type N: 1 MΩ, 16-bit incl. sign. Type R: 1 MΩ, 16-bit incl. sign. Type S: 1 MΩ, 16-bit incl. sign. Type T: 1 MΩ, 16-bit incl. sign. Type U: 1 MΩ, 16-bit incl. sign. Type TXK/TXK(L) to GOST: 1 MΩ, 16-bit incl. sign. Maximum shielded cable length: 200 m; 100 m for thermocouples. Isolation tested with 707 V DC (type test). Ambient temperature during operation: Horizontal installation, min: -30 °C; < 0 °C as of FS02. Horizontal installation, max: 60 °C. Vertical installation, min: -30 °C; < 0 °C as of FS02. Vertical installation, max: 50 °C. Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m. Width: 15 mm. Height: 73 mm. Depth: 58 mm.
