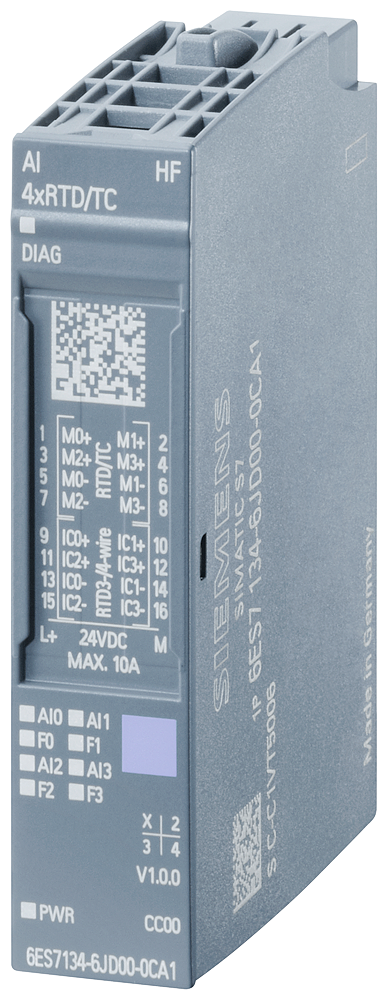

SIMATIC ET 200SP AI 4xRTD/TC 2-/3-/4-wire HF PU 10

Specifications: Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Input current: Current consumption, max: 35 mA. Typical power loss: 0.75 W. Analog inputs: Number of analog inputs: 4. Permissible input voltage for voltage input (destruction limit), max: 30 V. Constant measurement current for resistance-type transmitter, typical: 0.7 mA; 1.7 mA for Cu10 sensors. Cycle time (all channels), min: Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels); for line compensation in case of a three-wire connection, an additional cycle is necessary. Technical unit for temperature measurement adjustable: °C/°F/K. Input ranges (rated values), voltages: Input resistance (-1 V to +1 V): 1 MΩ, 16-bit incl. sign. Input resistance (-250 mV to +250 mV): 1 MΩ, 16-bit incl. sign. Input resistance (-50 mV to +50 mV): 1 MΩ, 16-bit incl. sign. Input resistance (-80 mV to +80 mV): 1 MΩ, 16-bit incl. sign. Input ranges (rated values), thermocouples: Type B: 1 MΩ, 16-bit incl. sign. Type C: 1 MΩ, 16-bit incl. sign. Type E: 1 MΩ, 16-bit incl. sign. Type J: 1 MΩ, 16-bit incl. sign. Type K: 1 MΩ, 16-bit incl. sign. Type L: 1 MΩ, 16-bit incl. sign. Type N: 1 MΩ, 16-bit incl. sign. Type R: 1 MΩ, 16-bit incl. sign. Type S: 1 MΩ, 16-bit incl. sign. Type T: 1 MΩ, 16-bit incl. sign. Type U: 1 MΩ, 16-bit incl. sign. Type TXK/TXK(L) to GOST: 1 MΩ, 16-bit incl. sign. Input ranges (rated values), resistance thermometer: Cu 10: 1 MΩ, 16-bit incl. sign. Ni 100: 1 MΩ, 16-bit incl. sign. Ni 1000: 1 MΩ, 16-bit incl. sign. LG-Ni 1000: 1 MΩ, 16-bit incl. sign. Ni 120: 1 MΩ, 16-bit incl. sign. Ni 200: 1 MΩ, 16-bit incl. sign. Ni 500: 1 MΩ, 16-bit incl. sign. Pt 100: 1 MΩ, 16-bit incl. sign. Pt 1000: 1 MΩ, 16-bit incl. sign. Pt 200: 1 MΩ, 16-bit incl. sign. Pt 500: 1 MΩ, 16-bit incl. sign. Input ranges (rated values), resistors: 0 to 150 ohms: 1 MΩ, 15 bits. 0 to 300 ohms: 1 MΩ, 15 bits. 0 to 600 ohms: 1 MΩ, 15 bits. 0 to 3000 ohms: 1 MΩ, 15 bits. 0 to 6000 ohms: 1 MΩ, 15 bits. PTC: 1 MΩ, 15 bits. Maximum shielded cable length: 200 m; 50 m with thermocouples. Isolation tested with 707 V DC (type test). Ambient temperature during operation: Horizontal installation, min: -30 °C; < 0 °C as of FS08. Horizontal installation, max: 60 °C. Vertical installation, min: -30 °C; < 0 °C as of FS08. Vertical installation, max: 50 °C. Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m. Width: 15 mm. Height: 73 mm. Depth: 58 mm.
