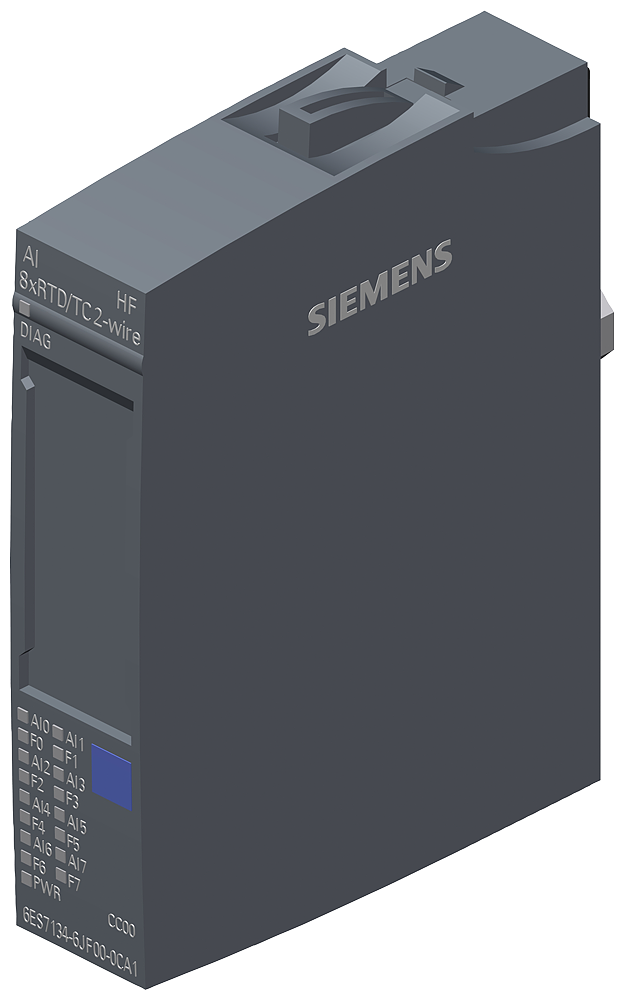

SIMATIC ET 200SP AI 8xRTD/TC 2-wire HF PU 10
SKU: 6ES7134-6JF00-2CA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, Analog input module, AI 8xRTD/TC 2-wire Quantity of High Feature Pack: 10 pieces; appropriate for BU types A0 and A1, colour code CC00, 16 bit, +/-0.1% channel diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 35 mA.
Typical power loss: 0.75 W.
Analog inputs:
Number of analog inputs: 8.
Permissible input voltage for voltage input (destruction limit), max: 30 V.
Constant measurement current for resistance-type transmitter, typical: 2 mA.
Cycle time (all channels), min: Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels).
Technical unit for temperature measurement adjustable: °C/°F/K.
Input ranges (rated values), voltages:
Input resistance (-1 V to +1 V): 1 MΩ, 16-bit incl. sign.
Input resistance (-250 mV to +250 mV): 1 MΩ, 16-bit incl. sign.
Input resistance (-50 mV to +50 mV): 1 MΩ, 16-bit incl. sign.
Input resistance (-80 mV to +80 mV): 1 MΩ, 16-bit incl. sign.
Input ranges (rated values), thermocouples:
Type B: 1 MΩ, 16-bit incl. sign.
Type C: 1 MΩ, 16-bit incl. sign.
Type E: 1 MΩ, 16-bit incl. sign.
Type J: 1 MΩ, 16-bit incl. sign.
Type K: 1 MΩ, 16-bit incl. sign.
Type L: 1 MΩ, 16-bit incl. sign.
Type N: 1 MΩ, 16-bit incl. sign.
Type R: 1 MΩ, 16-bit incl. sign.
Type S: 1 MΩ, 16-bit incl. sign.
Type T: 1 MΩ, 16-bit incl. sign.
Type U: 1 MΩ, 16-bit incl. sign.
Type TXK/TXK(L) to GOST: 1 MΩ, 16-bit incl. sign.
Input ranges (rated values), resistance thermometer:
Cu 10: 1 MΩ, 16-bit incl. sign.
Ni 100: 1 MΩ, 16-bit incl. sign.
Ni 1000: 1 MΩ, 16-bit incl. sign.
LG-Ni 1000: 1 MΩ, 16-bit incl. sign.
Ni 120: 1 MΩ, 16-bit incl. sign.
Ni 200: 1 MΩ, 16-bit incl. sign.
Ni 500: 1 MΩ, 16-bit incl. sign.
Pt 100: 1 MΩ, 16-bit incl. sign.
Pt 1000: 1 MΩ, 16-bit incl. sign.
Pt 200: 1 MΩ, 16-bit incl. sign.
Pt 500: 1 MΩ, 16-bit incl. sign.
Input ranges (rated values), resistors:
0 to 150 ohms: 1 MΩ, 15 bits.
0 to 300 ohms: 1 MΩ, 15 bits.
0 to 600 ohms: 1 MΩ, 15 bits.
0 to 3000 ohms: 1 MΩ, 15 bits.
0 to 6000 ohms: 1 MΩ, 15 bits.
PTC: 1 MΩ, 15 bits.
Maximum shielded cable length: 200 m; 50 m with thermocouples.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS05.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; < 0 °C as of FS05.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
