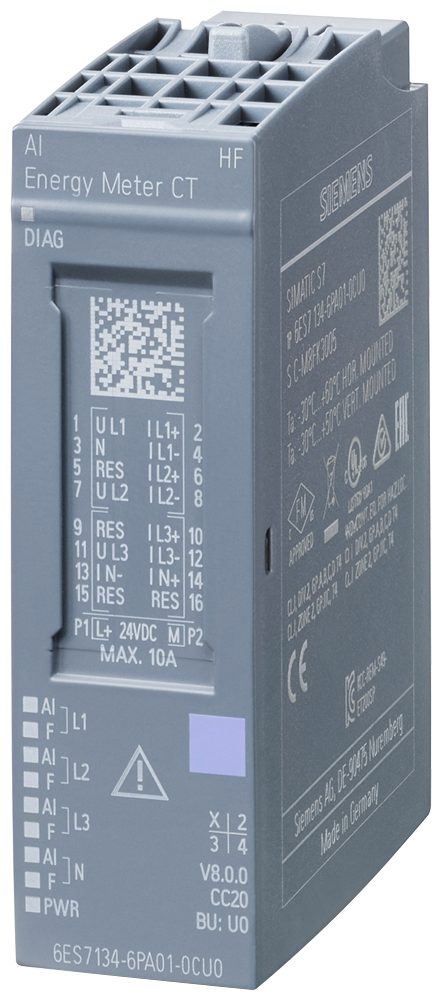

SIMATIC ET 200SP AI Energy Meter CT HF
SKU: 6ES7134-6PA01-0CU0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, analog input module, AI Energy Meter CT HF, for 1A or 5A current transformer, with network analysis functions, compatible with BU type U0, channel diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Input current:
Current consumption (rated value): 12.5 mA.
Current consumption, max: 17 mA.
Typical power loss: 1.4 W; 4x 6 A input current, 3x 230 V AC.
Analog inputs:
Cycle time (all channels), min: 50 MS; Time for consistent update of all measured and calculated values (cyclic und acyclic data).
Cable length:
Shielded, max: 200 m.
Unshielded, max: 200 m.
Isolation tested with: Between channels and backplane bus, 24 V supply: Routine test, 1 920 V AC, 2 s; between backplane bus and 24 V supply: Type test, 707 V DC.
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 3 000 m; Restrictions for installation altitudes > 2000 m.
Width: 20 mm.
Height: 73 mm.
Depth: 58 mm.
