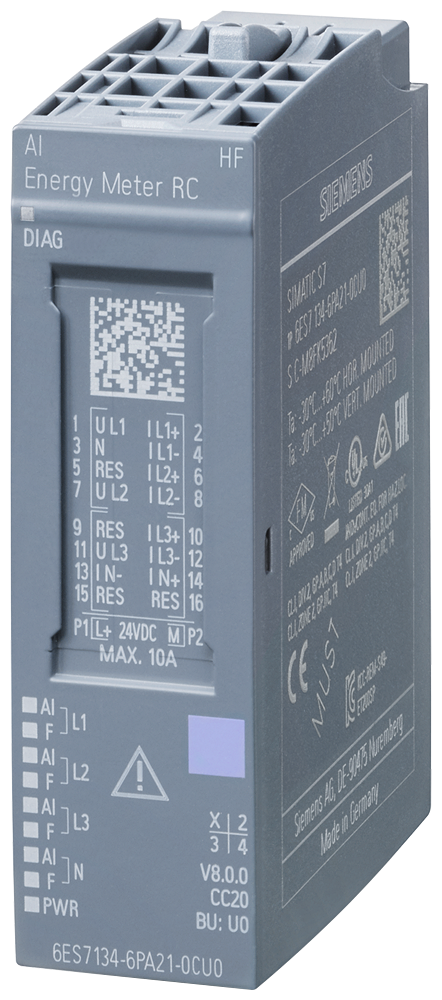

SIMATIC ET 200SP AI Energy Meter RC HF
SKU: 6ES7134-6PA21-0CU0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, analog input module, AI Energy Meter RC HF, for Rogowski coils or current/voltage transformer 333 mV, with network analysis functions, suited for BU type U0, channel diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Input current:
Current consumption (rated value): 12.5 mA.
Current consumption, max: 17 mA.
Typical power loss: 400 m W; 3x 230 V AC.
Analog inputs:
Cycle time (all channels), min: 50 MS; Time for consistent update of all measured and calculated values (cyclic und acyclic data).
Cable length:
Shielded, max: 200 m.
Unshielded, max: 200 m.
Isolation tested with: Between channels and backplane bus, 24 V supply: Routine test, 1 920 V AC, 2 s; between backplane bus and 24 V supply: Type test, 707 V DC.
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 3 000 m; Restrictions for installation altitudes > 2000 m.
Width: 20 mm.
Height: 73 mm.
Depth: 58 mm.
