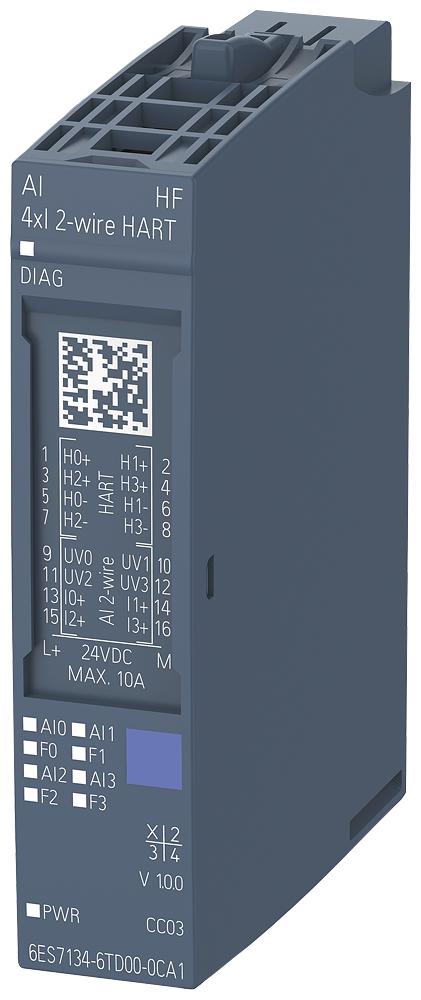

SIMATIC ET 200SP AI 4xI 2-wire HART PU 1
SKU: 6ES7134-6TD00-0CA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, analog HART input module, AI 4XI 2-wire HART High Feature compatible with BU types A0, A1, colour code CC03, channel diagnostics, 16-bit, +/-0.3%.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 25 mA; without sensor supply.
Typical power loss: 0.65 W; without sensor supply.
Analog inputs:
Number of analog inputs: 4; Differential inputs.
For current measurement: 4.
Permissible input current for current input (destruction limit), max: 50 mA.
Input ranges (rated values), currents:
Input resistance (4 mA to 20 mA): 15 bits + sign, 280 Ω; + approx. 0.35 V diode forward voltage.
Maximum shielded cable length: 800 m.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
