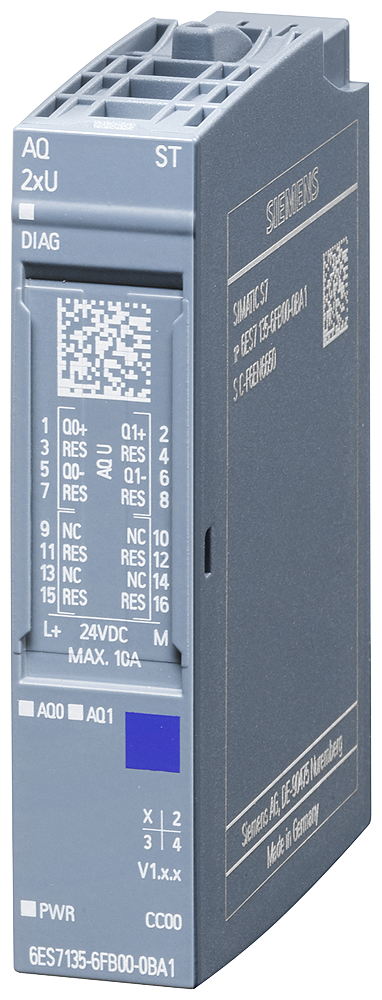

SIMATIC ET 200SP AQ 2xU ST
SKU: 6ES7135-6FB00-0BA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIMATIC ET 200SP is a 16-bit module diagnostics analog output module with colour code CC00.
It is compatible with BU types A0 and A1.
The pack quantity is one unit.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current consumption, max: 80 mA.
Typical power loss: 1 W.
Analog outputs:
Number of analog outputs: 2.
Voltage output, short-circuit current, max: 45 mA.
Cycle time (all channels), min: 1 Ms.
Output ranges, voltage:
0 to 10 V: 15 bits.
1 V to 5 V: 13 bits.
-5 V to +5 V: 15-bit incl. sign.
-10 V to +10 V: 16-bit incl. sign.
Voltages at the outputs: 30 V.
Maximum shielded cable length: 200 m.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS03.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; < 0 °C as of FS03.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2 000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
