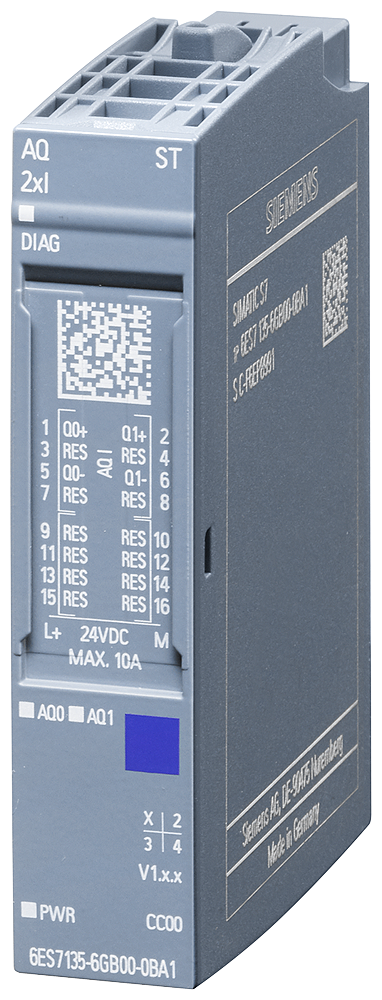

SIMATIC ET 200SP AQ 2xI ST
SKU: 6ES7135-6GB00-0BA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, Analog output module, AQ 2xI Standard, colour code CC00, module diagnostics, 16-bit, Pack quantity: 1 unit, appropriate for BU types A0, A1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 110 mA.
Typical power loss: 1.5 W.
Analog outputs:
Number of analog outputs: 2.
Cycle time (all channels), min: 1 MS.
Shielded cable length maximum: 1 000 m.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS03.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; < 0 °C as of FS03.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
