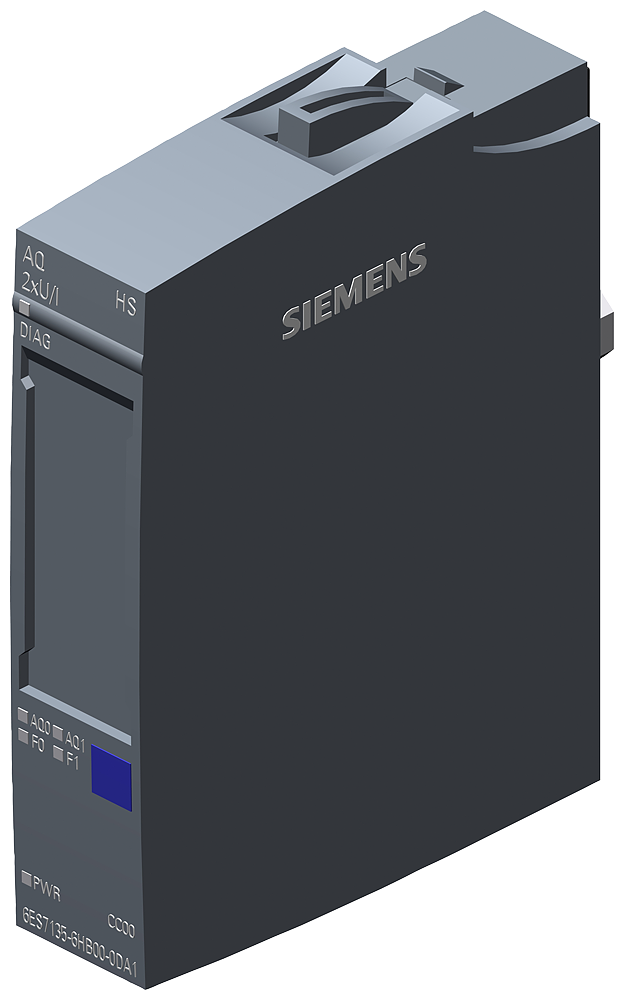

SIMATIC ET 200SP AQ 2xU/I HS

Specifications: Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Input current: Current consumption (rated value): 45 mA; without load. Current consumption, max: 90 mA; 2 channels current output 20 Ma. Typical power loss: 0.9 W. Analog outputs: Number of analog outputs: 2. Voltage output, short-circuit protection. Voltage output, short-circuit current, max: 45 mA. Cycle time (all channels), min: 125 µs. Analog output with oversampling. Values per cycle, max: 16. Resolution, min: 45 µs; (2 channels), 35 µs (1 channel). Output ranges, voltage: 0 to 10 V: 15 bits. 1 V to 5 V: 13 bits. -5 V to +5 V: 15-bit incl. sign. -10 V to +10 V: 16-bit incl. sign. Output ranges, current: 0 to 20 Ma: 15 bits. -20 mA to +20 mA: 16-bit incl. sign. 4 mA to 20 mA: 14 bits. Voltages at the outputs: 30 V. Maximum shielded cable length: 1 000 m; 200 m for voltage output. Isolation tested with 707 V DC (type test). Ambient temperature during operation: Horizontal installation, min: -30 °C; < 0 °C as of FS06. Horizontal installation, max: 60 °C. Vertical installation, min: -30 °C; < 0 °C as of FS06. Vertical installation, max: 50 °C. Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2 000 m. Width: 15 mm. Height: 73 mm. Depth: 58 mm.
