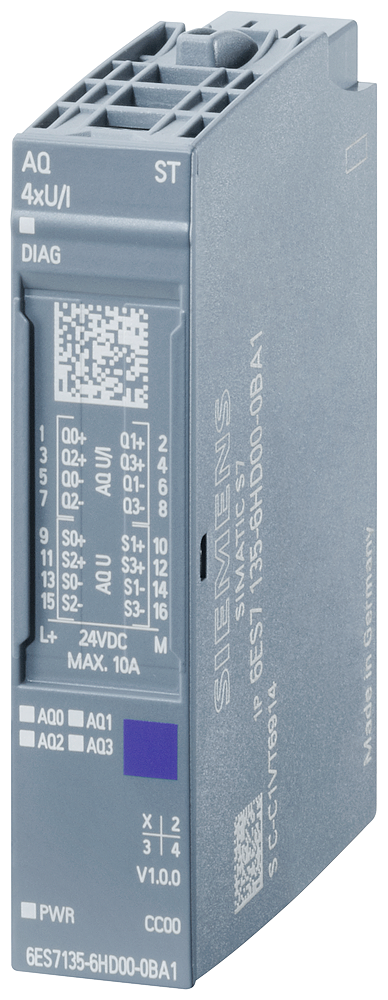

SIMATIC ET 200SP AQ 4xU/I ST
SKU: 6ES7135-6HD00-0BA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, Analog output module, AQ 4XU/I Standard, compatible with BU type A0, A1, colour code CC00, module diagnostics, 16 bit, +/-0.3%.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 150 mA.
Typical power loss: 1.5 W.
Analog outputs:
Number of analog outputs: 4.
Voltage output, short-circuit current, max: 45 Ma.
Cycle time (all channels), min: 5 MS.
Shielded cable length maximum: 1 000 m; 200 m for voltage output.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS07.
Horizontal installation, max: 60 °C; Observe derating.
Vertical installation, min: -30 °C; < 0 °C as of FS07.
Vertical installation, max: 50 °C; Observe derating.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
