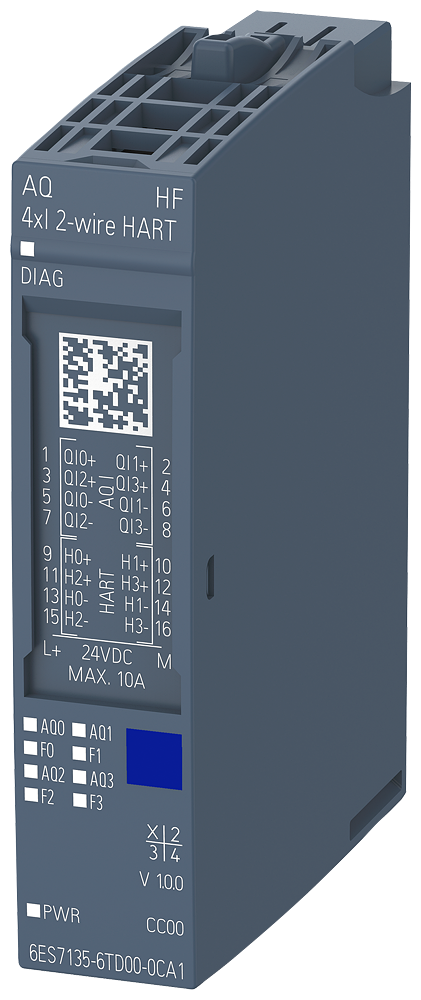

SIMATIC ET 200SP AQ 4xI HART HF
SKU: 6ES7135-6TD00-0CA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, analog HART output module, AQ 4xI HART High Feature, compatible with BU types A0 and A1, colour code CC00, channel diagnostics, 16 bit, +/-0.3%.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption (rated value): 115 mA.
Current consumption, max: 125 mA.
Typical power loss: 1.7 W.
Analog outputs:
Number of analog outputs: 4.
Current output, no-load voltage, max: 28 V.
Cycle time (all channels), min: 3 MS.
Shielded cable length maximum: 800 m.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
