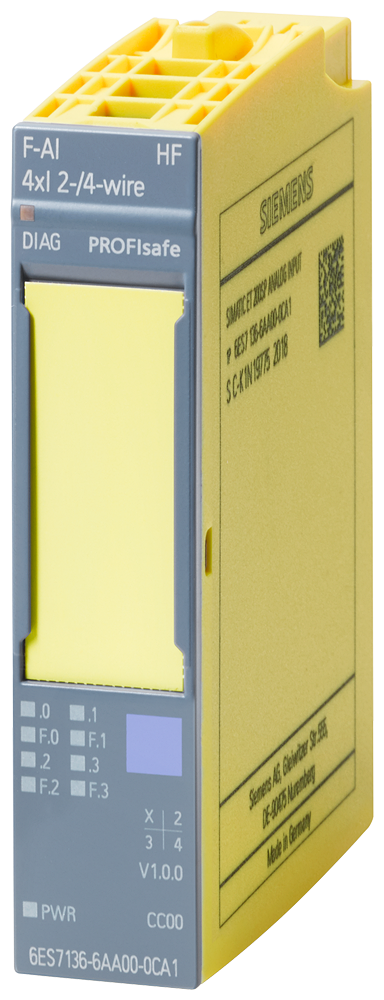

SIMATIC ET 200SP F-AI 4xI 0(4)..20mA 2-/4-wire HF
SKU: 6ES7136-6AA00-0CA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP with electrical module ET 200SP and F-AI 4xI0(4).The 20 mA HF fail-safe has analogue inputs up to PL e (ISO 13849) and SIL 3 (IEC 61508).
General information:
Product type designation: F-AI 4xI 0(4)..20mA 2-/4-wire HF.
Firmware version:
FW update possible: Yes.
usable BaseUnits: BU type A0, A1.
Colour code for module-specific colour identification plate: CC00.
Product function:
I&M data: Yes; I&M0 to I&M3.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V15 with HSP 203.
CiR - Configuration in RUN:
Reparameterization possible in RUN: No.
Calibration possible in RUN: No.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
power supply according to NEC Class 2 required: No.
Input current:
Current consumption (rated value): 0.38 A.
Current consumption, max.: 0.4 A.
Encoder supply:
24 V encoder supply:
24 V Yes; min.: L+ (-1.5 V).
Short-circuit protection: Yes.
Output current, max.: 300 mA; total current of all encoders/channels.
Power:
Power available from the backplane bus: 70 mW.
Power loss:
Power loss, typ.: 2 W.
Address area:
Address space per module:
Inputs: 14 byte; S7-300/400F CPU, 13 byte.
Outputs: 5 byte; S7-300/400F CPU, 4 byte.
Hardware configuration:
Automatic encoding: Yes.
Electronic coding element type F: Yes.
Buy currently uses Select Automation shop pricing and checkout.
Analog inputs:
Number of analog inputs: 4.
For current measurement: 4.
permissible input current for current input (destruction limit), max.: 35 mA.
Input ranges (rated values), currents:
0 to 20 mA: Yes.
Input resistance (0 to 20 mA): 125 Ω.
4 mA to 20 mA: Yes.
Input resistance (4 mA to 20 mA): 125 Ω.
Cable length:
shielded, max.: 1 000 m.
Analog value generation for the inputs:
Measurement principle: Sigma Delta.
Integration and conversion time/resolution per channel:
Resolution with overrange (bit including sign), max.: 16 bit.
Integration time, parameterizable: Yes.
Integration time (ms): 20 / 16,667.
Interference voltage suppression for interference frequency f1 in Hz: 50 / 60 Hz.
Smoothing of measured values:
Number of smoothing levels: 7.
Parameterizable: Yes.
Step: None: Yes; 1x conversion cycle time.
Step: low: Yes; 2x / 4x conversion cycle time.
Step: Medium: Yes; 8x / 16x conversion cycle time.
Step: High: Yes; 32x / 64x conversion cycle time.
Encoder:
Connection of signal encoders:
for current measurement as 2-wire transducer: Yes.
Burden of 2-wire transmitter, max.: 650 Ω.
for current measurement as 4-wire transducer: Yes.
Errors/accuracies:
Linearity error (relative to input range), (+/-): 0.1 %.
Temperature error (relative to input range), (+/-): 0.023 %/K.
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-): 0.1 %.
Operational error limit in overall temperature range:
Current, relative to input range, (+/-): 2 %.
Basic error limit (operational limit at 25 °C):
Current, relative to input range, (+/-): 0.1 %.
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency:
Series mode interference (peak value of interference < rated value of input range), min.: 40 dB.
Common mode interference, min.: 70 dB.
Interrupts/diagnostics/status information:
Diagnostics function: Yes.
Alarms:
Diagnostic alarm: Yes.
Limit value alarm: No.
Diagnoses:
Monitoring the supply voltage: Yes.
Wire-break: Yes.
Short-circuit: Yes.
Diagnostics indication LED:
RUN LED: Yes; green LED.
ERROR LED: Yes; red LED.
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED.
Channel status display: Yes; green LED.
for channel diagnostics: Yes; red LED.
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
between the channels and the power supply of the electronics: Yes.
Permissible potential difference:
between the inputs (UCM): 10 Vpp.
Isolation:
Isolation tested with: 707 V DC (type test).
Standards, approvals, certificates:
Highest safety class achievable in safety mode:
Performance level according to ISO 13849-1: Ple.
Category according to ISO 13849-1: Cat. 4.
SIL acc. to IEC 61508: SIL 3.
Probability of failure (for service life of 20 years and repair time of 100 hours):
Low demand mode: PFDavg in accordance with SIL3: < 5.00E-05.
High demand/continuous mode: PFH in accordance with SIL3: < 1.00E-09 1/h.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: 0 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: 0 °C.
vertical installation, max.: 50 °C.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 48 g.
