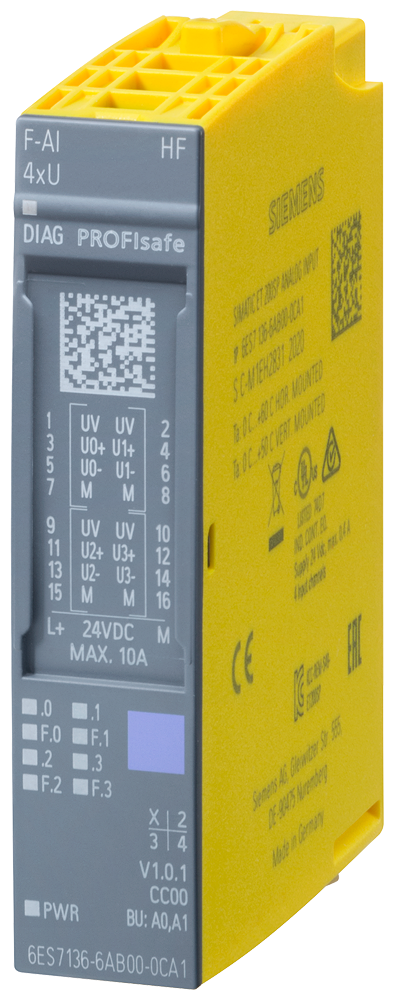

SIMATIC ET 200SP F-AI 4XU 0..10V HF
SKU: 6ES7136-6AB00-0CA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIMATIC DP electronics module ET 200SP features F-AI 4xU 0..10V HF and fail-safe analog inputs with up to PL E (ISO 13849) and SIL 3 (IEC 61508).
General information:
Product type designation: F-AI 4XU 0..10V HF.
Firmware version:
FW update possible: Yes.
usable BaseUnits: BU type A0, A1.
Color code for module-specific color identification plate: CC00.
Product function:
I&M data: Yes; I&M0 to I&M3.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V16 with HSP 308.
Operating mode:
cyclic measurement: Yes.
Oversampling: No.
MSI: No.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
power supply according to NEC Class 2 required: No.
Input current:
Current consumption (rated value): 0.38 A.
Current consumption, max.: 0.4 A.
Power:
Power available from the backplane bus: 70 mW.
Power loss:
Power loss, typ.: 2 W.
Address area:
Address space per module:
Inputs: 14 byte; S7-300/400F CPU, 13 byte.
Outputs: 5 byte; S7-300/400F CPU, 4 byte.
Standards, approvals, certificates:
Highest safety class achievable in safety mode:
Performance level according to ISO 13849-1: PLe.
Category according to ISO 13849-1: Cat. 4.
SIL acc. to IEC 61508: SIL 3.
Probability of failure (for service life of 20 years and repair time of 100 hours):
Low demand mode: PFDavg in accordance with SIL3: < 5.00E-05.
High demand/continuous mode: PFH in accordance with SIL3: < 1.00E-09 1/h.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: 0 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: 0 °C.
vertical installation, max.: 50 °C.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 48 g.
