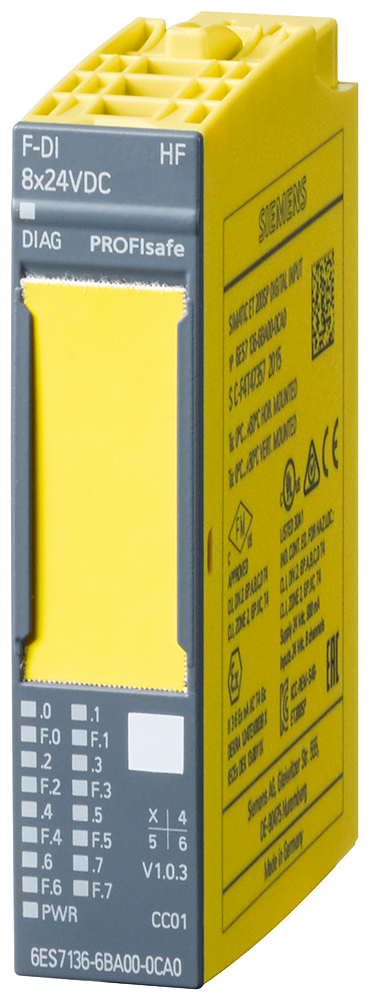

SIMATIC DP, electronic module for ET 200SP, F-DI 8x 24 V DC HF
SKU: 6ES7136-6BA01-0CA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP electronic module for ET 200SP, F-DI 8x 24 V DC HF, 15 mm width, up to PLe (ISO 13849-1)/SIL3 (IEC 61508).
General information:
Product type designation: F-DI 8x24VDC HF.
Firmware version:
FW update possible: Yes.
usable BaseUnits: BU type A0.
Color code for module-specific color identification plate: CC01.
Product function:
I&M data: Yes; I&M0 to I&M3.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: SIMATIC Safety V17 with HSP 0360 or higher.
STEP 7 configurable/integrated from version: as 6ES7136-6BA00-0CA0.
PROFINET from GSD version/GSD revision: GSDML V2.35.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
power supply according to NEC Class 2 required: No.
Input current:
Current consumption, max.: 40 mA; without load.
Power loss:
Power loss, typ.: 2 W.
Address area:
Address space per module:
Inputs: 7 byte; S7-300/400F CPU, 6 byte.
Outputs: 5 byte; S7-300/400F CPU, 4 byte.
Digital inputs:
Number of digital inputs: 8.
Source/sink input: Yes; P-reading.
Input characteristic curve in accordance with IEC 61131, type 1: Yes.
Standards, approvals, certificates:
Suitable for safety functions: Yes.
Highest safety class achievable in safety mode:
Performance level according to ISO 13849-1: Ple.
Category according to ISO 13849-1: Cat. 4.
SIL acc. to IEC 61508: SIL 3.
Probability of failure (for service life of 20 years and repair time of 100 hours).
Low demand mode: PFDavg in accordance with SIL3: < 2.00E-05.
High demand/continuous mode: PFH in accordance with SIL3: < 1.00E-09 1/h.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: 0 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: 0 °C.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 4 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 29 g.
