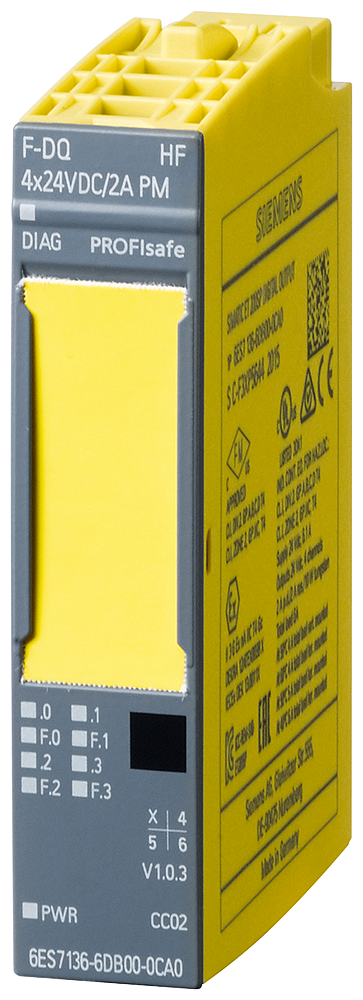

SIMATIC ET 200SP F-DQ 4x24 V DC/2A HF
SKU: 6ES7136-6DB00-0CA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP: Electronics module for ET 200SP, F-DQ 4X24 V DC/2A.
15 millimetres in width.
Up to PL E (ISO 13849).
Up to SIL 3 (IEC 61508).
General information:
Product type designation: F-DQ 4x24VDC/2A PM HF.
usable BaseUnits: BU type A0.
Product function:
I&M data: Yes; I&M0 to I&M3.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V12.
STEP 7 configurable/integrated from version: V5.5 SP3/.
PROFINET from GSD version/GSD revision: V2.31.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
power supply according to NEC Class 2 required: No.
Input current:
Current consumption (rated value): 75 mA; without load.
Current consumption, max.: 21 mA; From the backplane bus.
output voltage / header:
Rated value (DC): 24 V.
Power:
Power available from the backplane bus: 70 mW.
Power loss:
Power loss, typ.: 4 W.
Address area:
Address space per module:
Inputs: 5 byte.
Outputs: 5 byte.
Hardware configuration:
Automatic encoding: Yes.
Electronic coding element type F: Yes.
Buy currently uses Select Automation shop pricing and checkout.
Digital outputs:
Type of digital output: Transistor.
Number of digital outputs: 4.
Digital outputs, parameterizable: Yes.
Short-circuit protection: Yes.
Response threshold, typ.: > 3.3 A.
Open-circuit detection: Yes.
Response threshold, typ.: 8 mA.
Overload protection: Yes.
Response threshold, typ.: 2.9 A.
Limitation of inductive shutdown voltage to: Typ. -2x 47 V.
Controlling a digital input: Yes; digital output, according to IEC 61131-2, type 2.
Switching capacity of the outputs:
with resistive load, max.: 2 A.
on lamp load, max.: 10 W.
Load resistance range:
lower limit: 12 Ω.
upper limit: 2 000 Ω.
Output voltage:
for signal "1", min.: 24 V; L+ (-0.5 V).
Output current:
for signal "1" rated value: 2 A.
for signal "0" residual current, max.: 0.5 mA.
Switching frequency:
with resistive load, max.: 30 Hz; Symmetrical.
with inductive load, max.: 0.1 Hz; according to IEC 60947-5-1, DC-13, symmetrical.
on lamp load, max.: 10 Hz; Symmetrical.
Total current of the outputs:
Current per channel, max.: 2 A; note derating data in the manual.
Current per module, max.: 6 A; note derating data in the manual.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 500 m.
Interrupts/diagnostics/status information:
Diagnostics function: Yes.
Substitute values connectable: No.
Alarms:
Diagnostic alarm: Yes.
Diagnostics indication LED:
RUN LED: Yes; green/red DIAG LED.
ERROR LED: Yes; red LED.
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED
Channel status display: Yes; green LED.
for channel diagnostics: Yes; red LED
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
between the channels and the power supply of the electronics: No.
Isolation:
Isolation tested with: 707 V DC (type test).
Standards, approvals, certificates:
Suitable for safety functions: Yes.
Highest safety class achievable in safety mode:
Performance level according to ISO 13849-1: Ple.
SIL acc. to IEC 61508: SIL 3.
Probability of failure (for service life of 20 years and repair time of 100 hours):
Low demand mode: PFDavg in accordance with SIL2: < 2.00E-04.
Low demand mode: PFDavg in accordance with SIL3: < 2.00E-05.
High demand/continuous mode: PFH in accordance with SIL2: < 1.00E-08 1/h.
High demand/continuous mode: PFH in accordance with SIL3: < 1.00E-09 1/h.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: 0 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: 0 °C.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 4 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 57 g.
