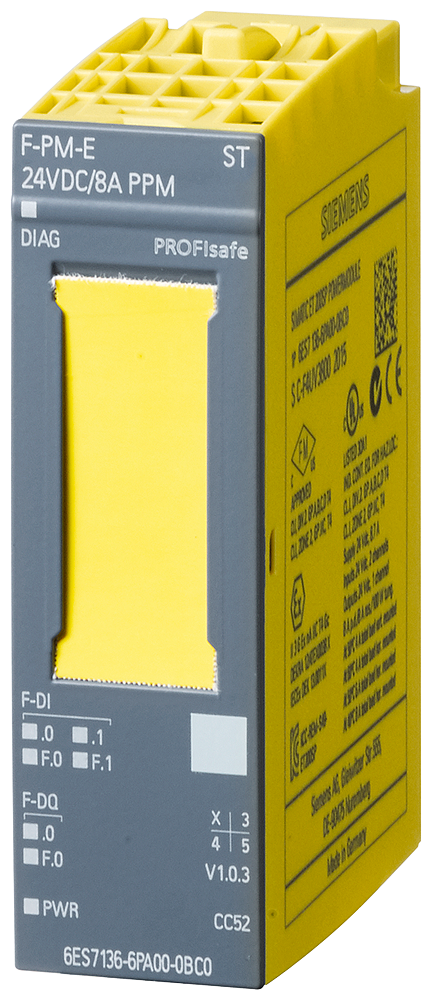

SIMATIC ET 200SP F-PM-E 24 V DC/8 A PPM ST
SKU: 6ES7136-6PA00-0BC0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, POWER M. F-PM-E PPM PROFIsafe, ET 200SP.
24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3 2 for safe digging.
Input 1 for safe digging.
Output PPM.
General information:
Product type designation: F-PM-E 24 V DC/8 A PPM ST.
usable BaseUnits: BU type C0.
Colour code for module-specific colour identification plate: CC52.
Product function:
I&M data: Yes; I&M0 to I&M3.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V12.
STEP 7 configurable/integrated from version: V5.5 SP3 /.
PROFINET from GSD version/GSD revision: V2.31.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 20.4 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption (rated value): 75 mA; without load.
Current consumption, max.: 21 mA; From the backplane bus.
output voltage / header:
Rated value (DC): 24 V.
Encoder supply:
Number of outputs: 2.
Short-circuit protection: Yes; Electronic (response threshold 0.7 A to 2.1 A).
Output current:
up to 60 °C, max.: 0.3 A.
24 V encoder supply:
24 V: Yes; min. L+ (-1.5 V).
Short-circuit protection: Yes.
Output current, max.: 600 mA; Total current of all encoders.
STRONG>Power:
Power available from the backplane bus: 70 mW.
Power loss:
Power loss, typ.: 5 W.
Address area:
Address space per module:
Inputs: 7 byte.
Outputs: 5 byte.
Hardware configuration:
Automatic encoding: Yes.
Electronic coding element type H: Yes.
Buy currently uses Select Automation shop pricing and checkout.
Digital inputs:
Number of digital inputs: 2.
Source/sink input: Yes; P-reading.
Input characteristic curve in accordance with IEC 61131, type 1: Yes.
Input voltage:
Type of input voltage: DC.
Rated value (DC): 24 V.
for signal "0": -30 to +5 V.
for signal "1": +15 to +30 V.
Input current:
for signal "1", typ.: 3.7 mA.
Input delay (for rated value of input voltage):
for standard inputs:
parameterizable: Yes.
at "0" to "1", min.: 0.4 ms.
at "0" to "1", max.: 20 ms.
at "1" to "0", min.: 0.4 ms.
at "1" to "0", max.: 20 ms.
for technological functions:
parameterizable: No.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 500 m.
Digital outputs:
Number of digital outputs: 1.
Short-circuit protection: Yes.
Response threshold, typ.: > 14.8 A.
Open-circuit detection: Yes.
Response threshold, typ.: 8 mA.
Overload protection: Yes.
Response threshold, typ.: 8.8 A.
Limitation of inductive shutdown voltage to max.: -1.5 V.
Switching capacity of the outputs:
with resistive load, max.: 8 A.
on lamp load, max.: 100 W.
Load resistance range:
lower limit: 3 Ω.
upper limit: 2 000 Ω.
Output voltage:
for signal "1", min.: 24 V; L+ (-0.5 V).
Output current:
for signal "1" rated value: 8 A.
for signal "0" residual current, max. :1.5 mA; PP-switching: max. 1.5 mA; PM-switching: max. 1 mA.
Switching frequency:
with resistive load, max.: 10 Hz; Symmetrical.
with inductive load, max.: 0.1 Hz; according to IEC 60947-5-1, DC-13, symmetrical.
on lamp load, max.: 4 Hz; Symmetrical.
Total current of the outputs:
Current per channel, max.: 8 A;: Note derating data in the manual.
Current per module, max.: 8 A;: Note derating data in the manual.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 500 m.
Interrupts/diagnostics/status information:
Diagnostics function: Yes; See Chapter "Alarms/diagnostic messages" in the manual.
Substitute values connectable: No.
Alarms:
Diagnostic alarm: Yes.
Hardware interrupt: No.
Diagnostics indication LED:
RUN LED: Yes; green LED.
ERROR LED: Yes; red LED.
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED.
Channel status display: Yes; green LED.
for channel diagnostics: Yes; red LED.
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
between the channels and the power supply of the electronics: No.
Isolation:
Isolation tested with: 707 V DC (type test).
Standards, approvals, certificates:
Suitable for safety functions: Yes.
Highest safety class achievable in safety mode:
Performance level according to ISO 13849-1: Ple.
SIL acc. to IEC 61508: SIL 3.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: 0 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: 0 °C.
vertical installation, max.: 50 °C.
Dimensions:
Width: 20 mm.
Height :73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 70 g.
