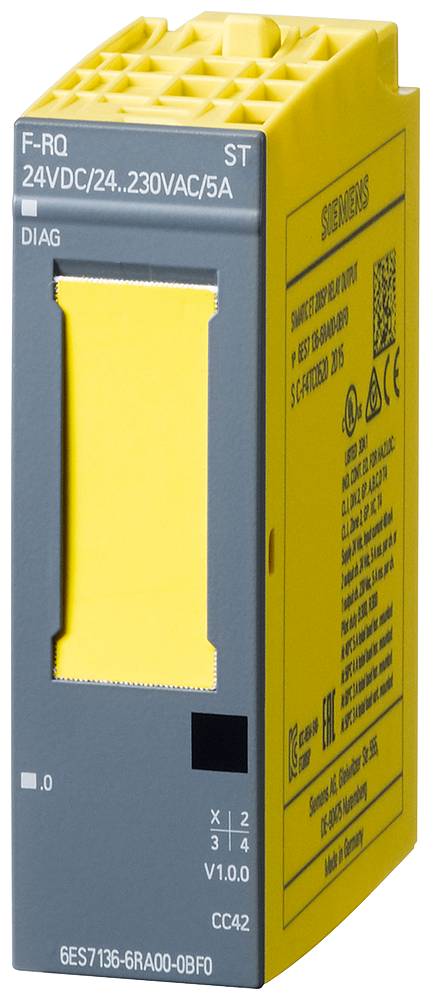

SIMATIC ET 200SP F-RQ 24 - 48VDC/ 24 - 230VAC/5A ST
SKU: 6ES7136-6RA00-0BF0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, Electronics Module for ET200SP, F-RQ 1x 24 V DC/24-230 VAC/5A ST.
Overall width: 20 mm.
One relay output (two NO).
Summation output current of 5 A.
Load voltage: 24 V DC and 24...230 V AC.
Can be used up to PL E (ISO 13849-1: 2008)/SIL 3 (IEC 61508: 2010) when controlled by (e.g., 6ES7136-6DB00-0CA0) FDQ.
General information:
Product type designation: F-RQ 24 ... 48VDC/24 ... 230VAC/5A ST.
usable BaseUnits: BU type F0.
Colour code for module-specific colour identification plate: CC42.
Product function:
I&M data: Yes; I&M0 to I&M3.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V13.
STEP 7 configurable/integrated from version: V5.5 SP4 and higher.
PROFINET from GSD version/GSD revision: V2.31.
Supply voltage:
Rated value (DC): 24 V; Coil voltage.
permissible range, lower limit (DC): 20.4 V.
permissible range, upper limit (DC): 28.8 V.
power supply according to NEC Class 2 required: No.
Power:
Power available from the backplane bus: 100 mW.
Power loss:
Power loss, typ.: 1 W.
Address area:
Address space per module:
Inputs: 1 byte.
Hardware configuration:
Automatic encoding: Yes.
Mechanical coding element: Yes.
Type of mechanical coding element: type C.
Buy currently uses Select Automation shop pricing and checkout.
Digital outputs:
Type of digital output: Relays.
Number of digital outputs: 1.
Limitation of inductive shutdown voltage to: No.
Controlling a digital input: Yes.
Switching capacity of the outputs:
with resistive load, max.: 5 A.
on lamp load, max.: 25 W.
Switching frequency:
with resistive load, max.: 2 Hz.
with inductive load, max.: 0.1 Hz; See data in manual.
with inductive load (acc. to IEC 60947-5-1, DC13), max.: 0.1 Hz.
with inductive load (acc. to IEC 60947-5-1, AC15), max.: 2 Hz.
Total current of the outputs (per module):
horizontal installation:
up to 40 °C, max.: 5 A; note derating data in the manual.
up to 50 °C, max.: 4 A; note derating data in the manual.
up to 60 °C, max.: 3 A; note derating data in the manual.
vertical installation:
up to 50 °C, max.: 3 A; note derating data in the manual.
Relay outputs:
Number of relay outputs: 1; 2 NO contacts.
Rated supply voltage of relay coil L+ (DC): 24 V.
Current consumption of relays (coil current of all relays), max.: 70 mA.
external protection for relay outputs: yes; 6 A, see data in manual.
Relay approved acc. to UL 508: Yes; Pilot Duty B300, R300.
Switching capacity of contacts:
Thermal continuous current, max.: 5 A.
Switching current, min.: 1 mA.
Switching current after exceeding 300 mA, min.: 10 mA.
Switching current after exceeding 300 mA, max.: 5 A.
Rated switching voltage (DC): 24 V.
Rated switching voltage (AC): 230 V.
Cable length:
shielded, max.: 500 m; for load contacts.
unshielded, max.: 300 m; for load contacts.
Control cable (input), max.: 10 m.
Interrupts/diagnostics/status information:
Diagnostics function: Yes.
Diagnostics indication LED:
RUN LED: Yes; green/red DIAG LED.
Channel status display: Yes; green LED.
Potential separation:
Potential separation channels:
between the channels: Yes; for SELV / PELV only.
between the channels and backplane bus: Yes.
between the channels and the power supply of the electronics: Yes.
Permissible potential difference:
between channels and backplane bus/supply voltage: 250 V AC (reinforced insulation).
Isolation:
Isolation tested with: 2 545 V DC/2 s (routine test).
Overvoltage category: III (according to IEC/EN 61131-2:2007 and EN 298:2012), II (according to IEC 61131-2:2017 and IEC 61010-2-201).
tested with:
between channels and backplane bus/supply voltage: DC 2 545 V 2 s (routine test), impulse voltage test DC 7 200 V / 5 positive and 5 negative pulses (type test).
between backplane bus and supply voltage: 707 V DC (type test).
Standards, approvals, certificates:
Suitable for safety functions: Yes.
Highest safety class achievable in safety mode:
Performance level according to ISO 13849-1: Ple.
Category according to ISO 13849-1: 4.
SIL acc. to IEC 61508: SIL 3.
Probability of failure (for service life of 20 years and repair time of 100 hours):
Low demand mode: PFDavg in accordance with SIL2: < 1.00E-04, function test 1x per year.
Low demand mode: PFDavg in accordance with SIL3: < 1.00E-05, function test 1x per month.
High demand/continuous mode: PFH in accordance with SIL2: < 1.00E-08 1/h, function test 1x per year.
High demand/continuous mode: PFH in accordance with SIL3: < 6.00E-09 1/h, function test 1x per month.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: 0 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: 0 °C.
vertical installation, max.: 50 °C.
Dimensions:
Width: 20 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 56 g.
