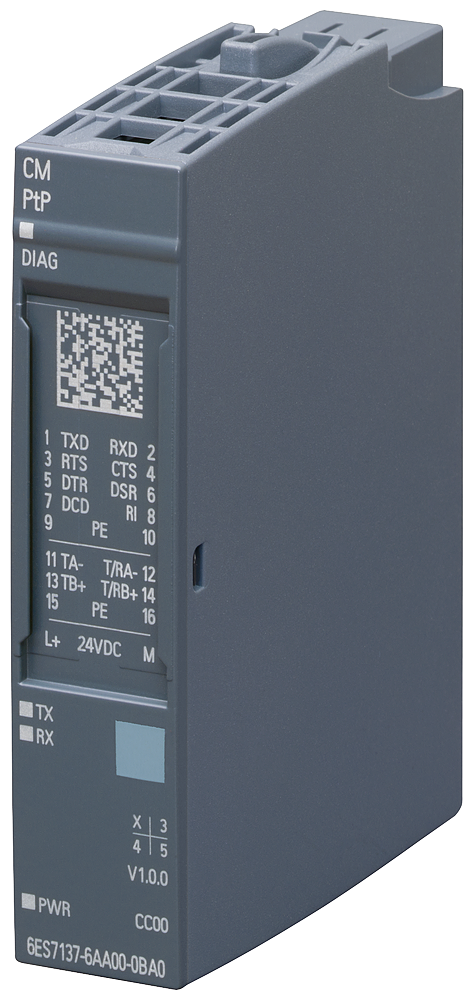

SIMATIC ET 200SP CM PtP RS 232, RS 422 / 485 Freeport, 3964(R), USS, Modbus RTU
SKU: 6ES7137-6AA01-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, CM PTP communication module for RS 422, RS-485, and RS-232 serial connections, freeport, 3964 (R), USS, MODBUS RTU master and slave, maximum data rate of 250 Kbit/s, appropriate for BU type A0, single-unit pack.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption (rated value): 31 Ma.
Current consumption, max: 35 mA.
Typical power loss: 0.7 W.
Interface types:
RS 232:
Transmission rate, max: 115.2 kbit/s.
Cable length, max: 15 m.
RS 232 auxiliary signals: RTS, CTS, DTR, DSR, RI, DCD.
RS 485:
Transmission rate, max: 250 kbit/s.
Cable length, max: 1 200 m; 100 to 1200 m, depending on transmission speed.
RS 422:
Transmission rate, max: 115.2 kbit/s.
Cable length, max: 1 200 m.
4-wire full duplex connection.
4-wire multipoint connection.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
