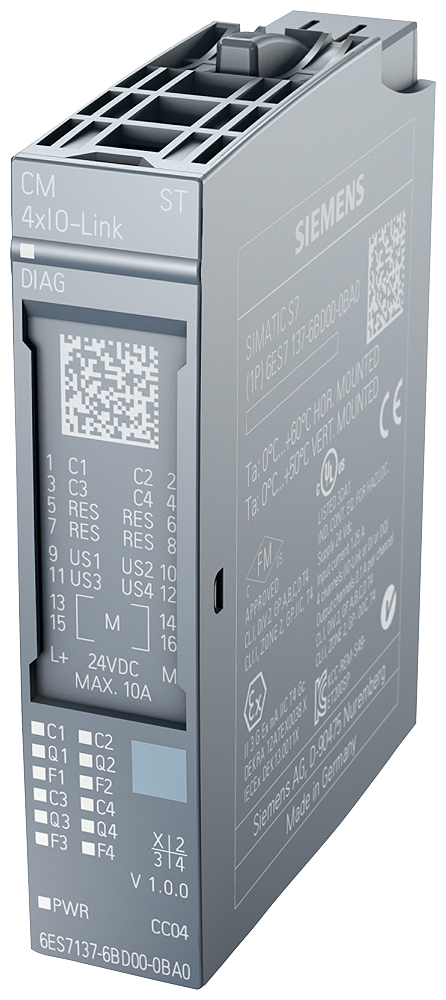

SIMATIC ET 200SP CM 4 x IO-Link ST
SKU: 6ES7137-6BD00-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP with CM 4xIO-Link ST communication module.
IO-Link Master V1.1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 20.4 V.
Permissible range, upper limit (DC): 28.8 V.
Input current consumption, max: 45 mA; without load.
Typical power loss: 1.7 W.
Number of outputs: 4.
Output current rated value: 700 mA; Per channel.
24 V encoder supply:
Short-circuit protection.
Output current, max: 2.1 A.
Typical power loss: 1 W.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 2 000 m; On request: Installation altitudes greater than 2 000 m.
Width: 13 mm.
Height: 73 mm.
Depth: 58 mm.
