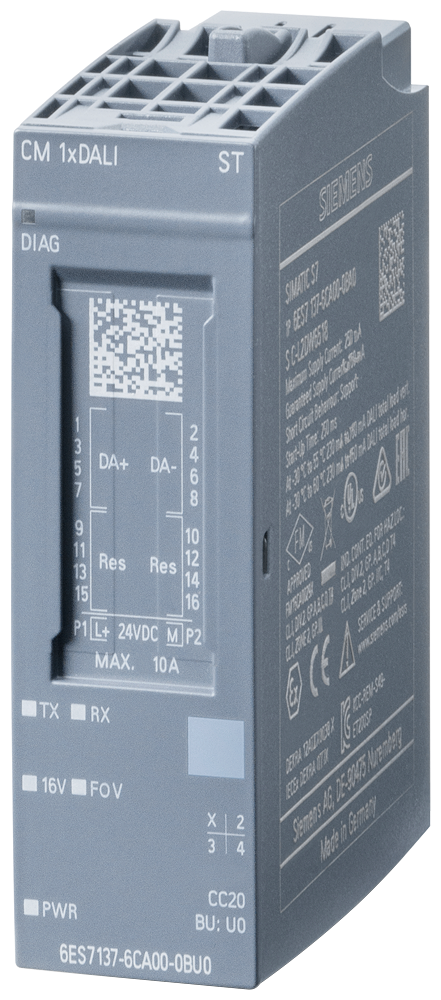

SIMATIC ET 200SP CM 1xDALI DALI master
SKU: 6ES7137-6CA00-0BU0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, CM 1x DALI, DALI master module, integrated DALI bus power supply 160 mA, up to 64 DALI control gears, 63 control devices, colour code CC20, compatible with BU type U0.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption (rated value): 163 mA.
Typical current consumption: 92 mA.
Current consumption, max: 250 mA.
Typical power loss: 1.7 W.
Isolation tested with 3 000 V AC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 3 000 m; Restrictions for installation altitudes > 2000 m.
Width: 20 mm.
Height: 73 mm.
Depth: 58 mm.
