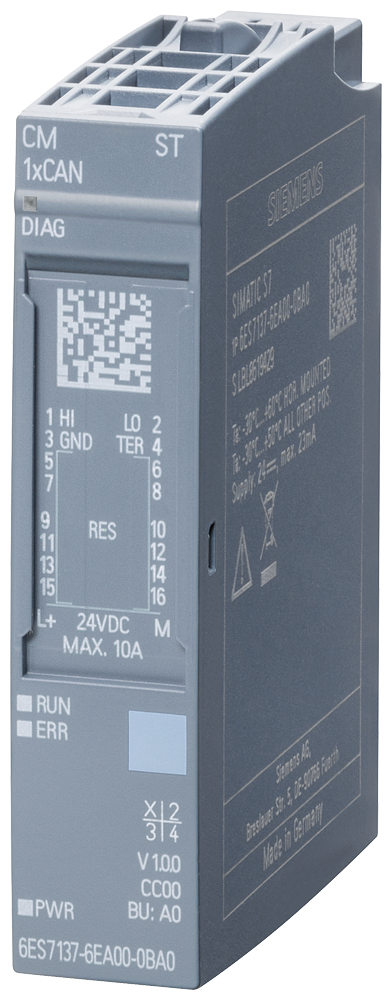

SIMATIC ET 200SP CM 1x CAN ST
SKU: 6ES7137-6EA00-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ET 200SP is a CM CAN Gateway that connects to CAN or CANopen networks.
It supports CAN 2.0A/B, CANopen Manager, and CANopen Slave.
It also supports IP20.
General information:
Product type designation: CM 1x CAN ST.
Firmware version: V1.0.1.
FW update possible: Yes.
usable BaseUnits: BU type A0.
Color code for module-specific color identification plate: CC00.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: Yes.
Measuring range scalable: No.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: STEP 7 V15.1 or higher.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption, typ.: 20 mA.
Current consumption, max.: 25 mA.
Power loss:
Power loss, typ.: 0.5 W.
Address area:
Address space per module:
Address space per module, max.: 256 byte.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C.
vertical installation, max: 50 °C.
ceiling installation, min.: -30 °C.
ceiling installation, max.: 50 °C.
floor installation, min.: -30 °C.
floor installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 32 g.
