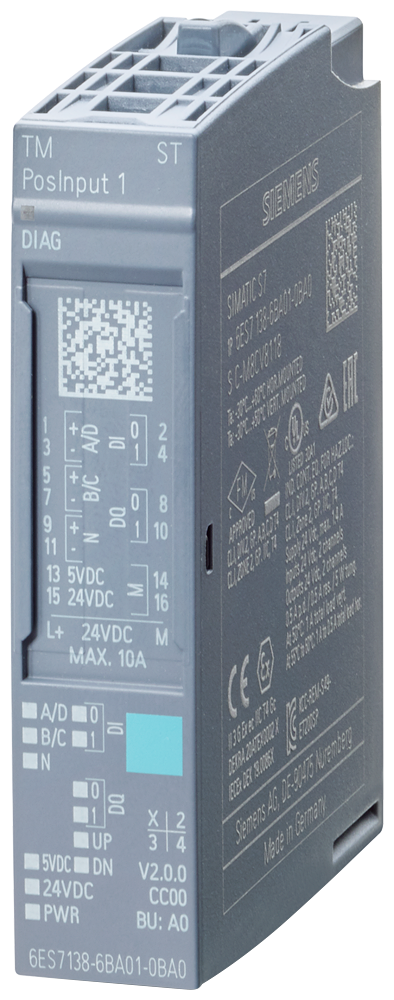

SIMATIC ET 200SP TM PosInput 1 1 MHz
SKU: 6ES7138-6BA01-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP; TM Posinput 1 counter and position decoder module for an RS 422 incremental or SSI absolute encoder.
2 DI, 2 DQ are appropriate for BU type A0.
Pack size: 1 unit.
General information:
Product type designation: TM PosInput 1.
Firmware version: V2.0.
FW update possible: Yes.
usable BaseUnits: BU type A0.
Colour code for module-specific color identification plate: CC00.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: Yes.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: STEP 7 V16 or higher.
STEP 7 configurable/integrated from version: V5.6 (use previous version *6BA00*).
PROFIBUS from GSD version/GSD revision: GSD Revision 5.
PROFINET from GSD version/GSD revision: GSDML V2.34.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
Load voltage L+:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption, max.: 75 mA; without load.
Power loss:
Power loss, typ.: 1.5 W.
Digital inputs:
Number of digital inputs: 2.
Digital inputs, parameterizable: Yes.
Input characteristic curve in accordance with IEC 61131, type 3: Yes.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 600 m.
Digital outputs:
Type of digital output: Transistor.
Number of digital outputs: 2.
Digital outputs, parameterizable: Yes.
Short-circuit protection: Yes; electronic/thermal.
Response threshold, typ.: 1 A.
Limitation of inductive shutdown voltage to: L+ (-53 V).
Controlling a digital input: Yes.
Cable length:
shielded, max. :1 000 m.
unshielded, max.: 600 m.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C; Observe derating.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C; Observe derating.
ceiling installation, min.: -30 °C.
ceiling installation, max.: 50 °C; Observe derating.
floor installation, min.: -30 °C.
floor installation, max.: 50 °C; Observe derating.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 45 g.
