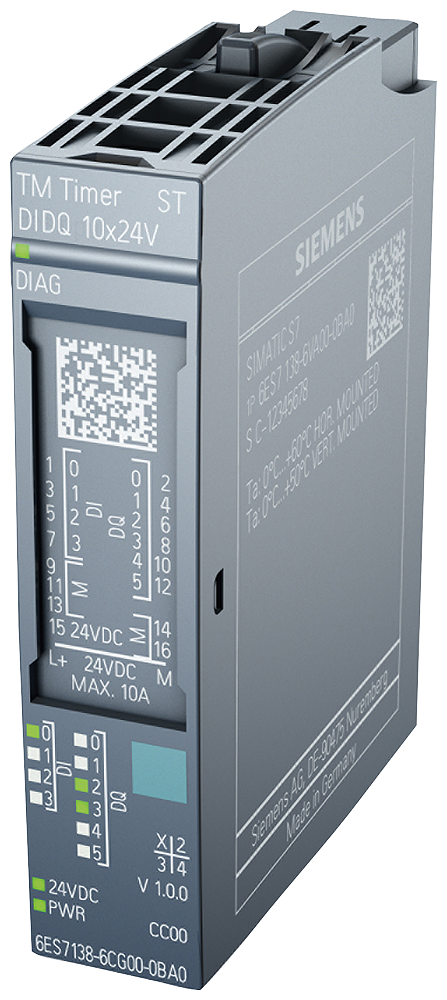

SIMATIC ET 200SP TM Timer DIDQ 10x24V
SKU: 6ES7138-6CG00-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP with TM timer DIDQ features 10x 24V time-controlled digital inputs and outputs.
4 DI and 6DQ with time stamp count, PWM, and oversampling.
General information:
Product type designation: TM Timer DIDQ 10x24V.
HW functional status: From FS03.
usable BaseUnits: BU type A0.
Product function:
I&M data: Yes; I&M 0.
Isochronous mode: Yes.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V13 Update 3.
STEP 7 configurable/integrated from version: V5.5 SP3 /.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
Load voltage L+:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes; against destruction.
Input current:
Current consumption, max.: 50 mA; without load.
Power loss:
Power loss, typ.: 1.5 W.
Digital inputs:
Number of digital inputs: 4.
Digital inputs, parameterizable: Yes.
Input characteristic curve in accordance with IEC 61131, type 3: Yes.
Cable length:
shielded, max.: 1 000 m; Depending on sensor, cable quality and rate of change.
unshielded, max.: 600 m; Depending on sensor, cable quality and rate of change.
Digital outputs:
Type of digital output: Transistor.
Number of digital outputs: 6.
Current sinking: Yes; With High Speed output.
Current sourcing: Yes.
Digital outputs, parameterizable: Yes.
Short-circuit protection: Yes; electronic/thermal.
Response threshold, typ.: 1.7 A with Standard output, 0.5 A with High Speed output.
Limitation of inductive shutdown voltage to: -0.8 V.
Cable length:
shielded, max.: 1 000 m; depending on load and cable quality.
unshielded, max.: 600 m; depending on load and cable quality.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C; Observe derating.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C; Observe derating.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 45 g.
