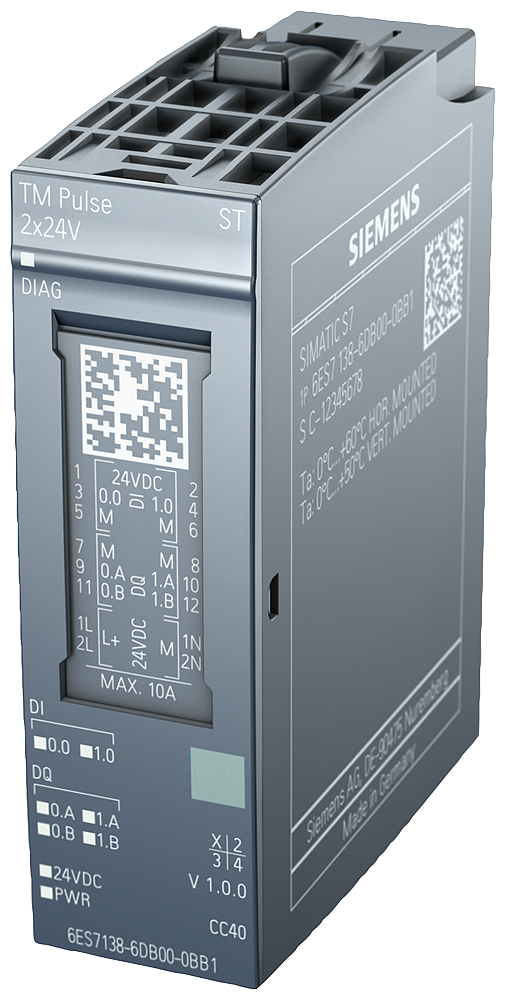

SIMATIC ET 200SP TM Pulse 2x24 V 2 channels, max. 2 A (4 A)
SKU: 6ES7138-6DB00-0BB1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, TM Pulse 2x24V PWM with pulse output.
2 channels, 2 A each, for proportional valves and DC motors.
General information:
Product type designation: TM Pulse 2x24 V.
HW functional status: From FS03.
Firmware version: V1.0.
FW update possible: Yes.
usable BaseUnits: BU type B1.
Colour code for module-specific color identification plate: CC40.
Product function:
I&M data: Yes; I&M 0.
Isochronous mode: Yes.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V13 SP1 + HSP.
STEP 7 configurable/integrated from version: V5.5 SP4 and higher.
PROFIBUS from GSD version/GSD revision: GSD Revision 5.
PROFINET from GSD version/GSD revision: GSDML V2.31.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
Load voltage L+:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Short-circuit protection: Yes.
Reverse polarity protection: Yes; against destruction.
Input current:
Current consumption, max.: 70 mA; without load.
Power loss:
Power loss, typ.: 1.7 W.
Digital inputs:
Number of digital inputs: 2; 1 per channel.
Digital inputs, parameterizable: Yes.
Input characteristic curve in accordance with IEC 61131, type 3: Yes.
Digital outputs:
Type of digital output: P- and M-switching.
Number of digital outputs: 2; 1 per channel.
Current sinking: Yes.
Current sourcing: Yes.
Digital outputs, parameterizable: Yes.
Short-circuit protection: Yes; electronic/thermal.
Response threshold, typ.: 6.8 A with Standard output, 2 A with High Speed output.
Limitation of inductive shutdown voltage to: -0.8 V.
Controlling a digital input: Yes.
Accuracy of pulse duration: ±100 ppm ±0.5 µs with High Speed output, ±100 ppm ±9 µs with Standard output.
minimum pulse duration: 1.5 µs; With High Speed output, 10 µs with Standard output.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C; Observe derating.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C; Observe derating.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual.
Dimensions:
Width: 20 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 50 g.
