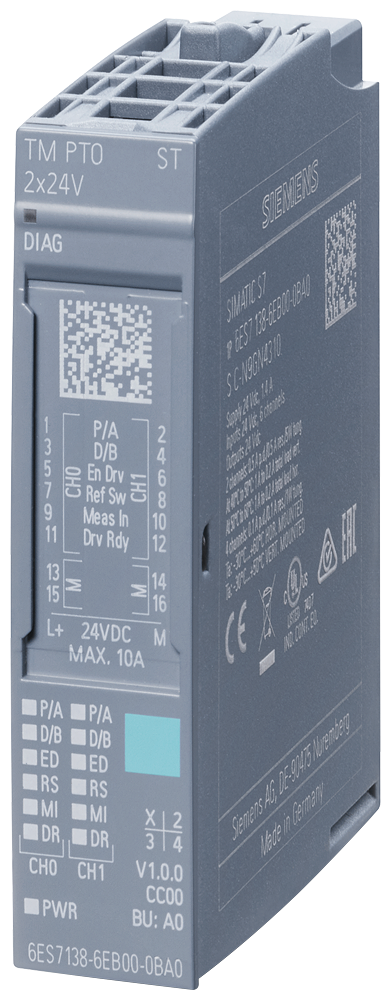

SIMATIC ET 200SP TM PTO 2x24V 2 channels, up to 200 kHz
SKU: 6ES7138-6EB00-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, TM PTO 2x24 V is an interface module for stepper drivers.
Two channels of pulse train output.
PTO: Two DI, one DQ, and 24 V DC per channel.
Suitable for BU type A0.
General information:
Product type designation: TM PTO 2x24V.
usable BaseUnits: BU type A0.
Colour code for module-specific color identification plate: CC00.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: Yes.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: STEP 7 V17 with HSP or higher.
PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher.
PROFINET from GSD version/GSD revision: GSDML V2.34.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
Load voltage L+:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption, max.: 50 mA; without load.
Power loss:
Power loss, typ.: 1.5 W.
Digital inputs:
Number of digital inputs: 6; 3 per channel.
Digital inputs, parameterizable: Yes.
Input characteristic curve in accordance with IEC 61131, type 3: Yes.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 600 m.
Digital outputs:
Number of digital outputs: 6; 3 per channel.
Current sinking: Yes; For 24 V PTO outputs.
Current sourcing: Yes.
Digital outputs, parameterizable: Yes.
Short-circuit protection: Yes; electronic/thermal.
Response threshold, typ.: 1 A.
Controlling a digital input: Yes.
Cable length:
shielded, max. : 600 m; Up to 10 kHz, 50 m at 200 kHz.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C; Observe derating.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C; Observe derating.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 45 g.
