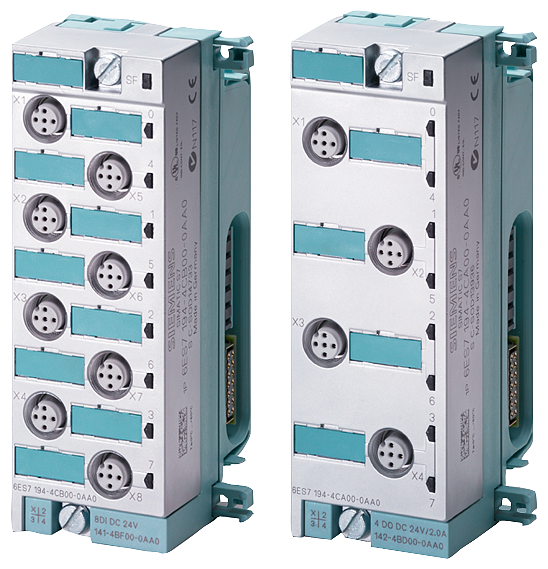

SIMATIC ET 200pro 8DI 24 V DC
SKU: 6ES7141-4BF00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, Electronic Module for ET 200 PRO 8 DI 24 V DC, Module Diagnostics; includes bus module and connection module IO 6ES7194-4.00-0AA0, available separately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Reverse polarity protection: Against destruction; encoder power supply outputs applied with reversed polarity.
Input current:
From supply voltage 1L+, max: 20 mA.
From backplane bus 3.3 V DC, max: 20 mA.
Encoder supply:
Number of outputs: 8.
Short-circuit protection: per module, electronic.
Output current, up to 55 °C, max: 1 A.
Typical power loss: 2.5 W.
Digital inputs:
Number of digital inputs: 8.
Input characteristic curve in accordance with IEC 61131, type 1.
Input voltage:
Rated value (DC): 24 V.
For signal "0": -3 to +5V.
For signal "1": 13 to 30V.
Input delay (for rated value of input voltage), for standard inputs:
At "0" to "1", min: 1.2 MS.
At "0" to "1", max: 4.8 MS.
At "1" to "0", min: 1.2 MS.
At "1" to "0", max: 4.8 MS.
Unshielded maximum cable length: 30 m.
Isolation tested with 707 V DC (type test).
Width: 45 mm.
Height: 130 mm.
Depth: 35 mm.
