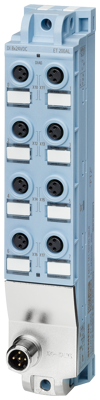

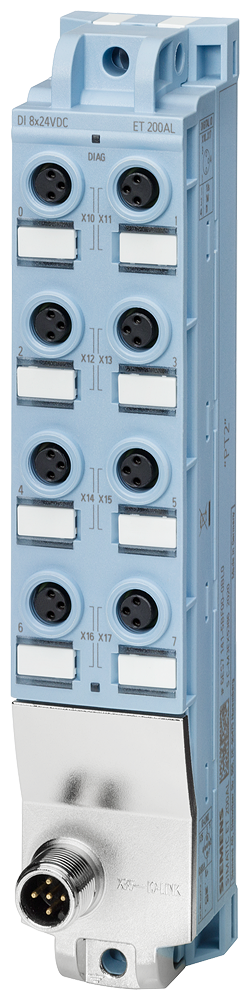

SIMATIC ET 200AL IO-Link DI 8x24VDC 8x M8

Specifications: Supply voltage for Load voltage 1L+: Rated value (DC): 24 V; Supply from 1Us+ of the IO-Link master. Permissible range, lower limit (DC): 18 V. Permissible range, upper limit (DC): 30 V. Reverse polarity protection: Against destruction; encoder power supply outputs applied with reversed polarity. Input current, Current consumption (rated value): 15 mA; without load. Number of outputs: 8; Supply from 1Us+ of the IO-Link master. 24 V encoder supply: Short-circuit protection: per module, electronic. Output current, max: 0.7 A; Total current of all encoders (depending on IO-Link master supply via 1Us+). Typical power loss: 1.5 W. Digital inputs: Number of digital inputs: 8. Input characteristic curve in accordance with IEC 61131, type 3. Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -30 °C. Maximum: 55 °C. Connection method: Design of electrical connection for the inputs and outputs: M8, 3-pole. Type of electrical connection for IO-Link: M12, 5-pin, A-coded. Width: 30 mm. Height: 159 mm. Depth: 40 mm.
