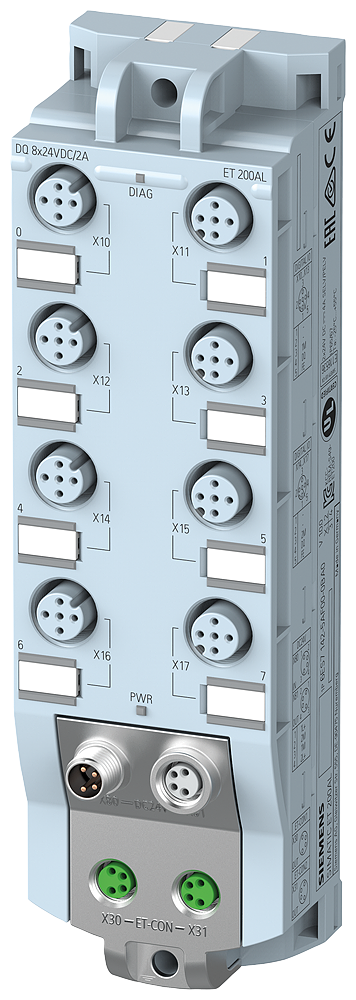

SIMATIC ET 200AL DQ 8x24VDC/2A 8x M12

Specifications: Load voltage 1L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: against destruction; load increasing. Load voltage 2L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: against destruction; load increasing. Input current: Current consumption (rated value): 40 mA; without load. From load voltage 1L+ (unswitched voltage): 4 A; Maximum value. From load voltage 2L+, max: 4 A; Maximum value. Typical power loss: 4 W. Digital outputs: Number of digital outputs: 8. In groups of 4; 2 load groups for 4 outputs each. Short-circuit protection: per channel, electronic. Response threshold, typical: 2.8 A. Limitation of inductive shutdown voltage to 2L+ (-47 V). Switching capacity of the outputs on lamp load, max: 10 W. Load resistance range: Lower limit: 12 Ω. Upper limit: 4 kΩ. Output voltage for signal "1", min: L+ (-0.8 V). Output current: For signal "1" rated value: 2 A. For signal "1" permissible range, max: 2 A; with inductive load to IEC 60947-5-1, DC-13 / AC-15. For signal "0" residual current, max: 0.5 Ma. Unshielded Cable length max: 30 m. Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -30 °C. Maximum: 55 °C. Connection method: Design of electrical connection for the inputs and outputs: M12, 5-pole. Design of electrical connection for supply voltage: M8, 4-pole. ET-Connection: M8, 4-pin, shielded. Width: 45 mm. Height: 159 mm. Depth: 40 mm.
