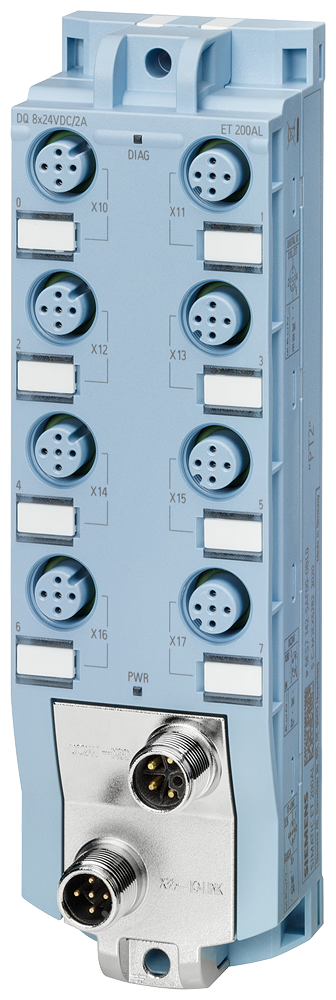

SIMATIC ET 200AL IO-Link DQ 8x24VDC/2A 8x M12

Specifications: Supply voltage for Load voltage 1L+: Rated value (DC): 24 V; Supply from 1Us+ of the IO-Link master. Permissible range, lower limit (DC): 18 V. Permissible range, upper limit (DC): 30 V. Reverse polarity protection: against destruction. Load voltage 2L+: Rated value (DC): 24 V; Supply via M12 connector L-coded. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: against destruction; load increasing. Input current: Current consumption (rated value): 12 mA; without load. From load voltage 2L+, max: 8 A; Maximum value. Typical power loss: 3.6 W. Digital outputs: Number of digital outputs: 8. Short-circuit protection: per channel, electronic. Response threshold: 2.8 A. Limitation of inductive shutdown voltage to 2L+ (-47 V). Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -30 °C. Maximum: 55 °C. Connection method: Design of electrical connection for the inputs and outputs: M12, 5-pin, A-coded. Type of electrical connection for IO-Link: M12, 5-pin, A-coded. Design of electrical connection for supply voltage: M12, 4-pin, L-coded. Width: 45 mm. Height: 159 mm. Depth: 45 mm.
