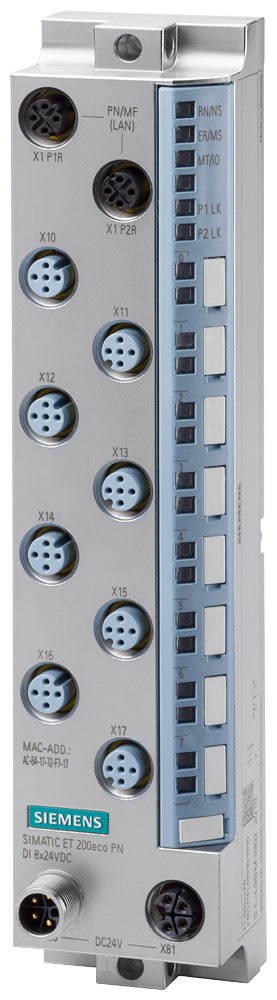

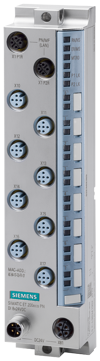

SIMATIC ET 200eco PN DQ 8x24VDC/2A, M12-L 8x M12
SKU: 6ES7142-6BR00-0BB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200eco PN, DQ 8x 24 V DC/2A, M12-L, 8x M12, single and double assignment, source output (PNP, switching to P potential), substitute value output, channel diagnostics for wire break and short-circuit at the output, shared device with two controllers, 0.25 MS isochronous mode, prioritized startup, MSO, MRP, S2 redundancy, I&M0...3, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP, IP67 / IP69K degree of protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage, Load voltage 1L+:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 20.4 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Load voltage 2L+:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 20.4 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: against destruction.
Input current:
Current consumption (rated value): 65 mA; without load.
From load voltage 1L+ (unswitched voltage): 12 A; Maximum value.
From load voltage 2L+, max: 12 A; Maximum value.
Typical power loss: 8.2 W.
Digital outputs:
Number of digital outputs: 8.
Current sourcing.
Short-circuit protection: per channel, electronic.
Response threshold: 4 A.
Limitation of inductive shutdown voltage to Type -14 V.
Controlling a digital input.
Load resistance range:
Lower limit: 12 Ω.
Upper limit: 4 kΩ.
Output voltage for signal "1", min: 2L+ (-0,8 V).
Output current:
For signal "1" rated value: 2 A.
For signal "1" permissible range, max: 2 A.
For signal "0" residual current, max: 0.2 mA.
Current per module, max: 8 A.
Unshielded maximum cable length: 30 m.
PROFINET interfaces: 1.
Interface type: PROFINET with 100 Mbit/s full duplex (100BASE-TX).
Interface types:
M12 port: 2x M12, 4-pin, D-coded.
Number of ports: 2.
Integrated switch.
Isolation tested with:
24 V DC circuits: 707 V DC (type test).
Test voltage for interface, rms value [VRMS]: 1 500 V; According to IEEE 802.3.
IP degree of protection: IP65/67/69K.
Ambient temperature during operation:
Minimum: -40 °C.
Maximum: 60 °C.
Connection method:
Design of electrical connection: 4/5-pin M12 circular connectors.
Design of electrical connection for the inputs and outputs: M12, 5-pin, A-coded.
Design of electrical connection for supply voltage: M12, 4-pin, L-coded.
Width: 45 mm.
Height: 200 mm.
Depth: 48 mm.
