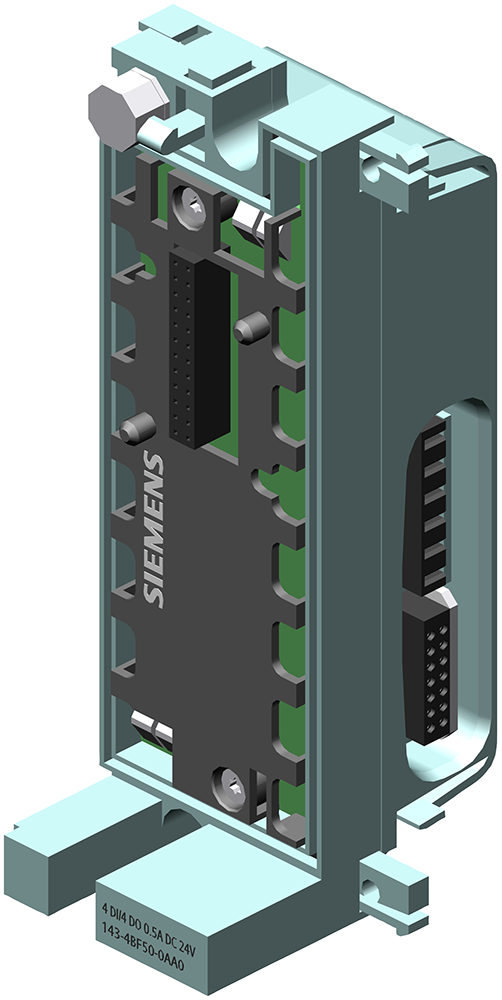

SIMATIC ET 200pro 4DI/4DQ 24 V DC/0.5 A
SKU: 6ES7143-4BF50-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, Electronic modules for ET 200 PRO 4 DI/4 DO 24 V DC, 0.5A Module Diagnostics, including bus module and connection module IO 6ES7194-4.00-0AA0 (order separately).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage, Load voltage 2L+:
Rated value (DC): 24 V.
Short-circuit protection.
Reverse polarity protection.
Input current:
From load voltage 2L+ (without load), max: 20 mA.
From backplane bus 3.3 V DC, max: 20 mA.
Encoder supply, Short-circuit protection: per module, electronic.
Output current, up to 55 °C, max: 1 A.
Typical power loss: 2 W.
Digital inputs:
Number of digital inputs: 4.
Input characteristic curve in accordance with IEC 61131, type 3.
Input voltage:
Rated value (DC): 24 V.
For signal "0": -3 to +5V.
For signal "1": +11 to +30V.
Input current for signal "1": 7 Ma.
Input delay (for rated value of input voltage), for standard inputs:
At "0" to "1", max: 3 MS.
At "1" to "0", max: 3 MS.
Unshielded maximum cable length: 30 m.
Digital outputs:
Number of digital outputs: 4.
Short-circuit protection: per channel, electronic.
Response threshold: 0.7 A.
Limitation of inductive shutdown voltage to (L1+, L2+) -47 V.
Controlling a digital input.
Load resistance range:
Lower limit: 48 Ω.
Upper limit: 4 kΩ.
Output current:
For signal "1" rated value: 0.5 A.
For signal "0" residual current, max: 0.5 Ma.
Isolation tested with 707 V DC (type test).
Width: 45 mm.
Height: 130 mm.
Depth: 35 mm.
