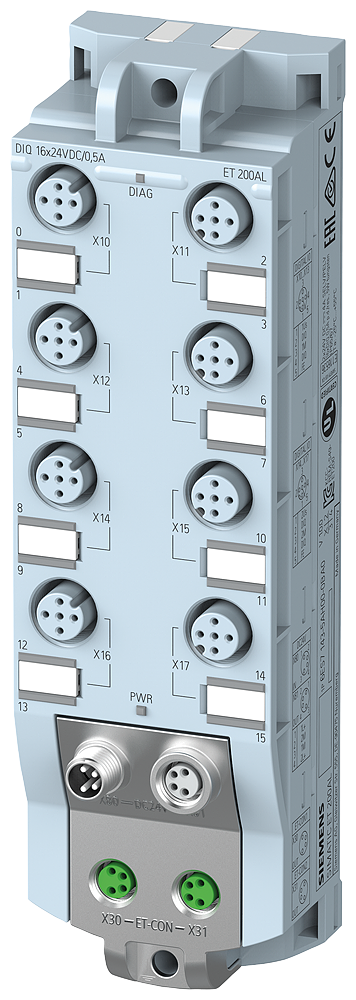

SIMATIC ET 200AL DIQ 16x24VDC/0.5A 8x M12, with operating mode counter
SKU: 6ES7143-5AH00-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200AL, DIQ 16x24 V DC/0.5 A, 8 x M12.
Level of protection IP67.
General information:
Product type designation: DIQ 16x24VDC/0.5A.
HW functional status: FS03.
Firmware version: V1.2.x.
Product function:
I&M data: Yes; I&M0 to I&M3.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: STEP 7 V14 or higher.
STEP 7 configurable/integrated from version: V5.5 SP4 Hotfix 7 or higher.
PROFIBUS from GSD version/GSD revision: GSD as of Revision 5.
PROFINET from GSD version/GSD revision: GSDML V2.3.1.
Operating mode:
DI: Yes.
Counter: Yes.
DQ: Yes.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
power supply according to NEC Class 2 required: No.
Load voltage 1L+:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 20.4 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes; Against destruction; encoder power supply outputs applied with reversed polarity; loads pick up.
Load voltage 2L+:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 20.4 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes; Against destruction; encoder power supply outputs applied with reversed polarity, loads pick up.
Input current:
Current consumption (rated value): 75 mA; without load.
from load voltage 1L+ (unswitched voltage): 4 A; Maximum value.
from load voltage 2L+, max.: 4 A; Maximum value.
Power loss:
Power loss, typ.: 4 W.
Digital inputs:
Number of digital inputs: 16; Parameterizable as DIQ.
Input characteristic curve in accordance with IEC 61131, type 3: Yes.
Digital outputs:
Number of digital outputs: 16; Parameterizable as DIQ.
in groups of 8; 2 load groups for: 8 outputs each.
Short-circuit protection: Yes; per channel, electronic.
Response threshold, typ.: 0.7 A.
Limitation of inductive shutdown voltage to: L+ (-53 V).
Degree and class of protection:
IP degree of protection: IP65/67.
Ambient conditions:
Ambient temperature during operation:
min.: -30 °C.
max.: 55 °C.
connection method:
Design of electrical connection for the inputs and outputs: M12, 5-pole.
Design of electrical connection for supply voltage: M8, 4-pole.
ET-Connection:
ET-Connection: M8, 4-pin, shielded.
Dimensions:
Width: 45 mm.
Height: 159 mm.
Depth: 40 mm.
Weights:
Weight, approx.: 195 g.
