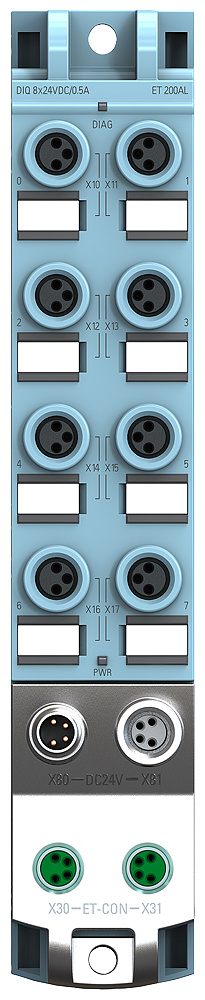

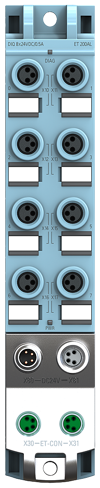

SIMATIC ET 200AL DIQ 4+DQ 4x24VDC/0.5A 8x M8

Specifications: Supply voltage for Load voltage 1L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: Against destruction; encoder power supply outputs applied with reversed polarity; loads pick up. Load voltage 2L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: against destruction; load increasing. Input current: Current consumption (rated value): 40 mA; without load. From load voltage 1L+ (unswitched voltage): 4 A; Maximum value. From load voltage 2L+, max: 4 A; Maximum value. Number of outputs: 4. 24 V encoder supply: Short-circuit protection: per module, electronic. Output current, max: 0.7 A; Total current of all encoders. Typical power loss: 2.5 W. Digital inputs: Number of digital inputs: 4; Parameterizable as DIQ. Input characteristic curve in accordance with IEC 61131, type 3. Number of simultaneously controllable inputs: All mounting positions — up to 55 °C, max: 4. Input voltage: Rated value (DC): 24 V. For signal "0": -3 to +5V. For signal "1": +11 to +30V. Input current for signal "1": 3.2 mA. Input delay (for rated value of input voltage) for standard inputs: At "0" to "1", min: 1.2 MS. At "0" to "1", max: 4.8 MS. At "1" to "0", min: 1.2 MS. At "1" to "0", max: 4.8 MS. Unshielded cable length, max: 30 m. Digital outputs: Number of digital outputs: 8; 4 DQ fixed, 4 DIQ parameterizable. In groups of 4; 2 load groups for 4 outputs each. Short-circuit protection: per channel, electronic. Response threshold: 0.7 A. Limitation of inductive shutdown voltage to 2L+ (-47 V). Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -30 °C. Maximum: 55 °C. Connection method: Design of electrical connection for the inputs and outputs: M8, 3-pole. Design of electrical connection for supply voltage: M8, 4-pole. ET-Connection: M8, 4-pin, shielded. Width: 30 mm. Height: 159 mm. Depth: 40 mm.
