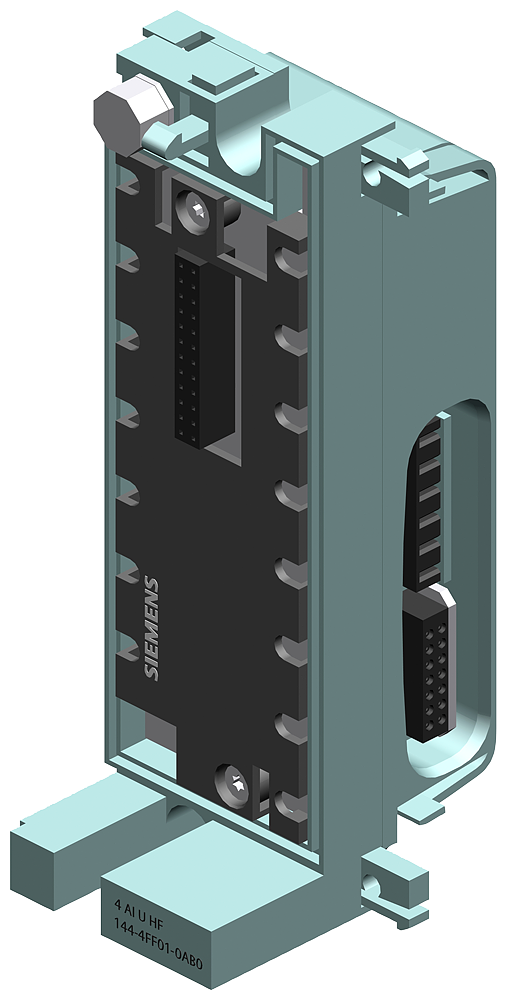

SIMATIC ET 200pro 4AI U HF
SKU: 6ES7144-4FF01-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, Electronic module for ET 200 PRO 4 AI U High Feature, +-10 V; 0...10 V; +-5 V; 1...5 V; Channel diagnostics; includes bus module and connection module IO 6ES7194-4.00-0AA0 (order separately).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Reverse polarity protection: against destruction.
Input current:
From supply voltage 1L+, max: 40 mA; Typical.
From backplane bus 3.3 V DC, max: 12 mA; Typical.
Encoder supply:
Number of outputs: 4.
Short-circuit protection: per module, electronic to frame.
Output current, up to 55 °C, max: 1 A.
Typical power loss: 1.1 W.
Analog inputs:
Number of analog inputs: 4.
Permissible input voltage for voltage input (destruction limit), max: 35 V.
Cycle time (all channels) max: 5 MS.
Input ranges (rated values), voltages:
0 to +10 V.
1 V to 5 V.
-10 V to +10 V.
-5 V to +5 V.
Shielded maximum cable length: 30 m.
Isolation tested with 707 V DC (type test).
Width: 45 mm.
Height: 130 mm.
Depth: 35 mm.
