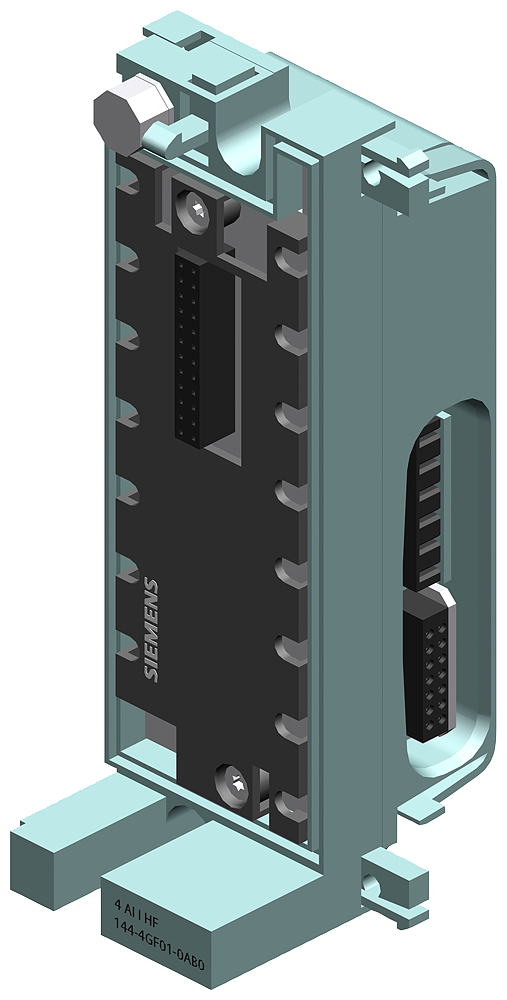

SIMATIC ET 200pro 4AI I HF
SKU: 6ES7144-4GF01-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, Electronic module for ET 200 PRO 4 AI I High Feature, +-20 mA; 0...20 mA; 4-20 mA; Channel diagnostics; includes bus module and connection module IO 6ES7194-4.00-0AA0 (order separately).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Reverse polarity protection: against destruction.
Input current:
From supply voltage 1L+, max: 40 mA; Typical.
From backplane bus 3.3 V DC, max: 12 mA; Typical.
Output current, up to 55 °C, max: 1 A.
Typical power loss: 1.1 W.
Analog inputs:
Number of analog inputs: 4.
Permissible input current for current input (destruction limit), max: 40 Ma.
Cycle time (all channels) max: 10 MS.
Input ranges (rated values), currents:
0 to 20 mA: 50 Ω.
-20 mA to +20 mA: 50 Ω.
4 mA to 20 mA: 50 Ω.
Shielded maximum cable length: 30 m.
Isolation tested with 707 V DC (type test).
Width: 45 mm.
Height: 130 mm.
Depth: 35 mm.
