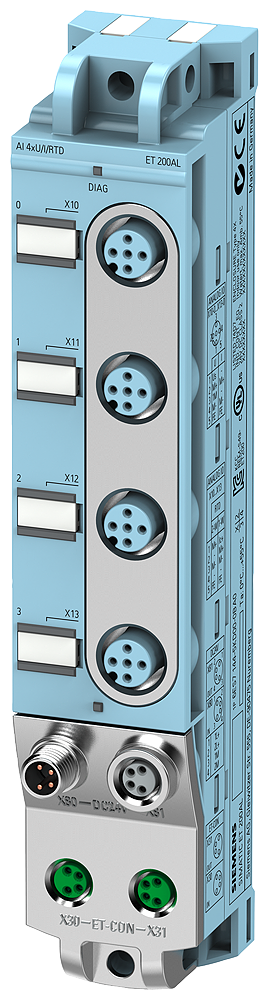

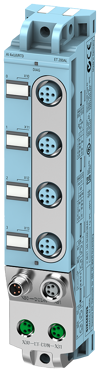

SIMATIC ET 200AL AI 4xU/I/RTD 4x M12

Specifications: Load voltage 1L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: Against destruction. Input current: Current consumption (rated value): 35 mA; without load. From load voltage 1L+ (unswitched voltage): 4 A; Maximum value. From load voltage 2L+, max: 4 A; Maximum value. Encoder supply: Number of outputs: 4. 24 V encoder supply: Short-circuit protection: per channel, electronic. Output current, max: 0.5 A; Per channel, total current of all channels max. 1 A. Typical power loss: 1.5 W. Analog inputs: Number of analog inputs: 4. For current measurement: 4. For voltage measurement: 4. For resistance/resistance thermometer measurement: 4. Permissible input voltage for voltage input (destruction limit), max: 30 V. permissible input current for current input (destruction limit), max: 50 mA. Cycle time (all channels), min: 8 ms. Technical unit for temperature measurement adjustable: Degrees Celsius / degrees Fahrenheit / Kelvin. Input ranges (rated values), voltages: 0 to +10 V: 10 MΩ. 1 V to 5 V: 10 MΩ. Input ranges (rated values), currents: 0 to 20 Ma: 50 Ω. 4 mA to 20 mA: 50 Ω. Input ranges (rated values), resistance thermometer: Ni 100: 10 MΩ, Standard/climate. Pt 100: 10 MΩ, Standard/climate. Input ranges (rated values), resistors: 0 to 150 ohms: 10 MΩ. 0 to 300 ohms: 10 MΩ. Maximum shielded cable length: 30 m. Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -30 °C. Maximum: 55 °C. Connection method: Design of electrical connection for the inputs and outputs: M12, 5-pole. Design of electrical connection for supply voltage: M8, 4-pole. ET-Connection: M8, 4-pin, shielded. Width: 30 mm. Height: 159 mm. Depth: 40 mm.
