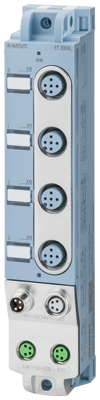

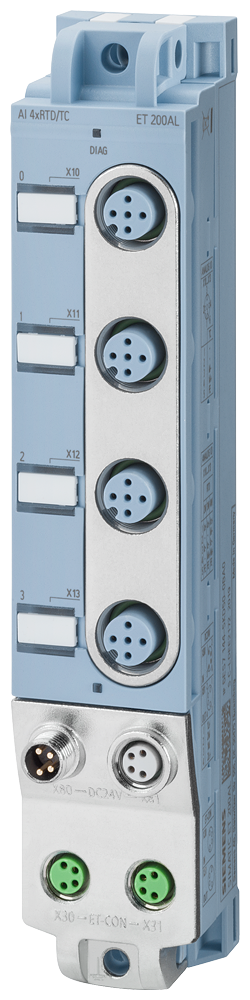

SIMATIC ET 200AL AI 4xRTD/TC 4x M12

Specifications: Load voltage 1L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: Against destruction. Input current: Current consumption (rated value): 25 mA; without load. From load voltage 1L+ (unswitched voltage): 4 A; Maximum value. From load voltage 2L+, max: 4 A; Maximum value. Typical power loss: 0.6 W. Analog inputs: Number of analog inputs: 4. For current measurement: 4. For voltage measurement: 4. For resistance/resistance thermometer measurement: 4. Permissible input voltage for voltage input (destruction limit), max: 15 V. Constant measurement current for resistance-type transmitter, typical: 230 - 300 µA. Cycle time (all channels), min: 90 MS. Technical unit for temperature measurement adjustable: Degrees Celsius / degrees Fahrenheit / Kelvin. Input ranges (rated values), voltages: -80 mV to +80 mV: 10 MΩ, 16-bit incl. sign. Input ranges (rated values), thermocouples: Type B: 10 MΩ, 16-bit incl. sign. Type C: 10 MΩ, 16-bit incl. sign. Type E: 10 MΩ, 16-bit incl. sign. Type J: 10 MΩ, 16-bit incl. sign. Type K: 10 MΩ, 16-bit incl. sign. Type L: 10 MΩ, 16-bit incl. sign. Type N: 10 MΩ, 16-bit incl. sign. Type R: 10 MΩ, 16-bit incl. sign. Type S: 10 MΩ, 16-bit incl. sign. Type T: 10 MΩ, 16-bit incl. sign. Type U: 10 MΩ, 16-bit incl. sign. Input ranges (rated values), resistance thermometer: Ni 100: 10 MΩ, Standard/climate. Ni 1000: 10 MΩ, Standard/climate. Pt 100: 10 MΩ, Standard/climate. Pt 1000: 10 MΩ, Standard/climate. Input ranges (rated values), resistors: 0 to 150 ohms: 10 MΩ. 0 to 300 ohms: 10 MΩ. Maximum shielded cable length: 30 m. Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -30 °C. Maximum: 55 °C. Connection method: Design of electrical connection for the inputs and outputs: M12, 5-pole. Design of electrical connection for supply voltage: M8, 4-pole. ET-Connection: M8, 4-pin, shielded. Width: 30 mm. Height: 159 mm. Depth: 40 mm.
