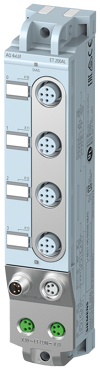

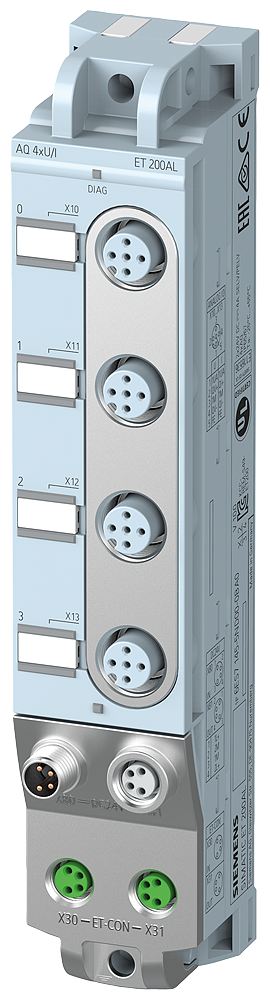

SIMATIC ET 200AL AQ 4xU/I 4x M12

Specifications: Supply voltage: power supply according to NEC Class 2 required. Load voltage 1L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: Against destruction; actuator power supply outputs applied with reversed polarity. Input current: Current consumption (rated value): 110 mA; without load. From load voltage 1L+ (unswitched voltage): 4 A; Maximum value. From load voltage 2L+, max: 4 A; Maximum value. Actuator supply: Number of outputs: 4. Short-circuit protection: per module, electronic. Output current rated value: Total current 1 A up to 45 °C; 0.5 A up to 55 °C. Typical power loss: 2.6 W. Analog outputs: Number of analog outputs: 4. Voltage output, short-circuit protection. Voltage output, short-circuit current, max: 24 mA. Current output, no-load voltage, max: 15 V. Cycle time (all channels) max: 1 MS. Output ranges, voltage: 0 to 10 V: 15 bits. 1 V to 5 V: 14 bits. -10 V to +10 V: 16-bit incl. sign. Output ranges, current: 0 to 20 mA: 15 bits. -20 mA to +20 mA: 16-bit incl. sign. 4 mA to 20 mA: 14 bits. Maximum shielded cable length: 30 m. Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -30 °C. Maximum: 55 °C. Connection method: Design of electrical connection for the inputs and outputs: M12, 5-pole. Design of electrical connection for supply voltage: M8, 4-pole. ET-Connection: M8, 4-pin, shielded. Width: 30 mm. Height: 159 mm. Depth: 40 mm.
