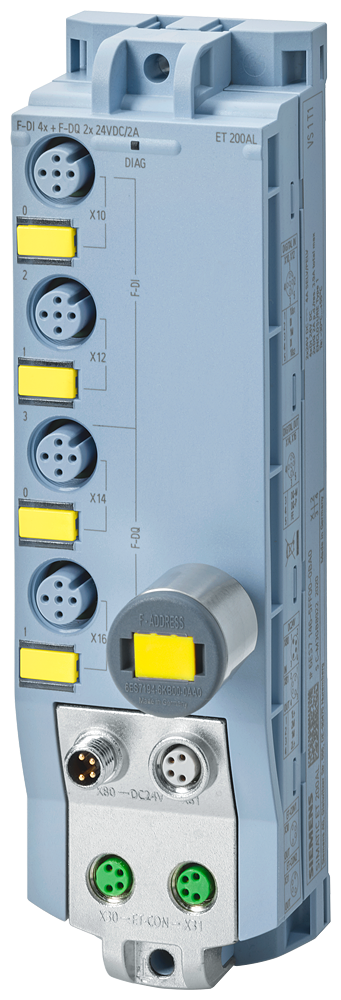

SIMATIC ET 200AL F-DI 4+F-DQ 2x24VDC/2A, 4xM12 4x M12

Specifications: Supply voltage, Rated value (DC): 24 V. For Load voltage 1L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: against destruction. Load voltage 2L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: against destruction; outputs applied with reversed polarity for loads connected between M-switch and 2L+ will conduct. Input current: Current consumption (rated value): 55 mA (1L+) / 40 mA (2L+); without load. From load voltage 1L+ (unswitched voltage): 4 A; Maximum value. From load voltage 2L+, max: 4 A; Maximum value. Number of outputs: 2. 24 V encoder supply: Short-circuit protection: per load voltage, electronic (response threshold 0.7 A to 1.7 A). Output current, max: 1 A; total current of all encoders, max. 0.5 A per load voltage; maximum of 2.0 V drop. Typical power loss: 4.7 W. Digital inputs: Number of digital inputs: 4. Input voltage: Rated value (DC): 24 V. For signal "0": -30 to +5 V. For signal "1": +15 to +30 V. Input current for signal "1": 4.85 mA. Input delay (for rated value of input voltage) for standard inputs: Parameterizable. At "0" to "1", min: 0.8 MS. At "0" to "1", max: 12.8 MS. At "1" to "0", min: 0.8 MS. At "1" to "0", max: 12.8 MS. Unshielded cable length, max: 30 m. Digital outputs: Number of digital outputs: 2. In groups of 2. Short-circuit protection: per channel, electronic. Response threshold: 10 A; measured at M-switch, threshold for P-switch is higher. Open-circuit detection: per channel, only detects when output is off. Overload protection. Response threshold: 3.4 A; measured at P-switch. Limitation of inductive shutdown voltage to P-switch: -26 V DC referenced to 2M, M-switch: +48 V DC referenced to 2M. Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -30 °C. Maximum: 55 °C. Connection method: Design of electrical connection for the inputs and outputs: M12, 5-pole. Design of electrical connection for supply voltage: M8, 4-pole. ET-Connection: M8, 4-pin, shielded. Width: 45 mm. Height: 159 mm. Depth: 40 mm.
