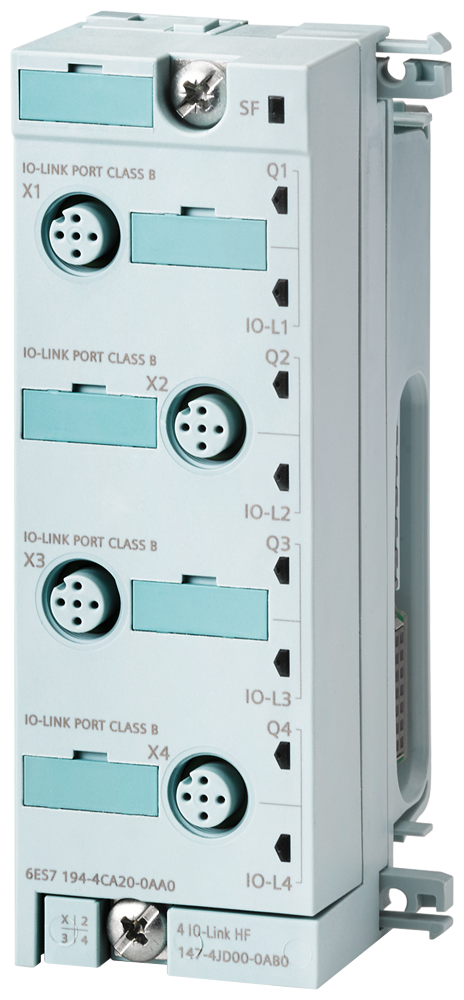

SIMATIC ET 200pro 4IO-L HF
SKU: 6ES7147-4JD00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, electronic module for ET 200pro 4 IO-Link High Feature, Channel Diagnostics, comprising bus module and connection module IO 6ES7194-4CA20-0AA0, ordered separately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Reverse polarity protection.
Load voltage 2L+:
Rated value (DC): 24 V.
Short-circuit protection.
Reverse polarity protection: against destruction; load increasing.
Input current:
From supply voltage 1L+, max: 40 mA.
From load voltage 2L+ (without load), max: 20 mA.
From backplane bus 3.3 V DC, max: 20 mA.
Encoder supply:
Number of outputs: 4.
Short-circuit protection: per module, electronic.
Output current, up to 55 °C, max: 2 A.
Typical power loss: 2.6 W.
IO-Link:
Number of ports: 4.
Simultaneously controllable ports: 4.
IO-Link protocol 1.0.
IO-Link protocol 1.1.
Transmission rate: 4.8 k Baud (COM1); 38.4 k Baud (COM2), 230.4 k Baud (COM3).
Size of process data, input per port: 32 bytes.
Size of process data, input per module: 32 bytes.
Size of process data, output per port: 32 bytes.
Size of process data, output per module: 32 bytes.
Memory size for device parameter: 2 Kbyte; for each port.
Master backup: possible with LIOLink_Master function block.
Configuration without S7-PCT: Possible; AutoStart/manual function.
Cable length unshielded, max: 20 m.
Connection of IO-Link devices:
Port type A: 3-core cable.
Port type B: Additional device supply: for X1 and X2 max. 2 A in total, for X3 and X4 max. 2 A in total.
Isolation tested with 707 V DC (type test).
Width: 45 mm.
Height: 130 mm.
Depth: 35 mm.
