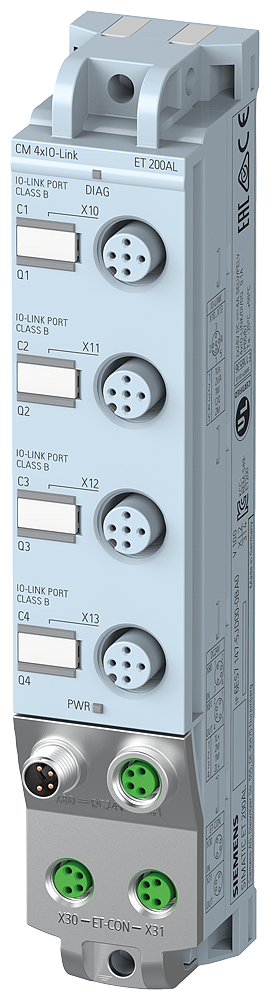

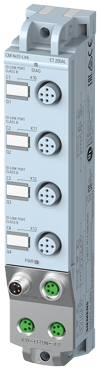

SIMATIC ET 200AL CM 4x IO-Link 4x M12

Specifications: Load voltage 1L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Load voltage 2L+: Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection: against destruction; load increasing. Input current: Current consumption (rated value): 40 mA; without load. From load voltage 1L+ (unswitched voltage): 4 A; Maximum value. From load voltage 2L+, max: 4 A; Maximum value. Encoder supply Number of outputs: 4. 24 V encoder supply: Short-circuit protection: per module, electronic. Output current, max: 1.4 A; Total current of all ports. Typical power loss: 2.6 W. Isolation tested with 707 V DC (type test). IP degree of protection: IP65/67. Ambient temperature during operation: Minimum: -30 °C. Maximum: 55 °C. Connection method: Design of electrical connection for the inputs and outputs: M12, 5-pole. Design of electrical connection for supply voltage: M8, 4-pole. ET-Connection: M8, 4-pin, shielded. Width: 30 mm. Height: 159 mm. Depth: 40 mm.
