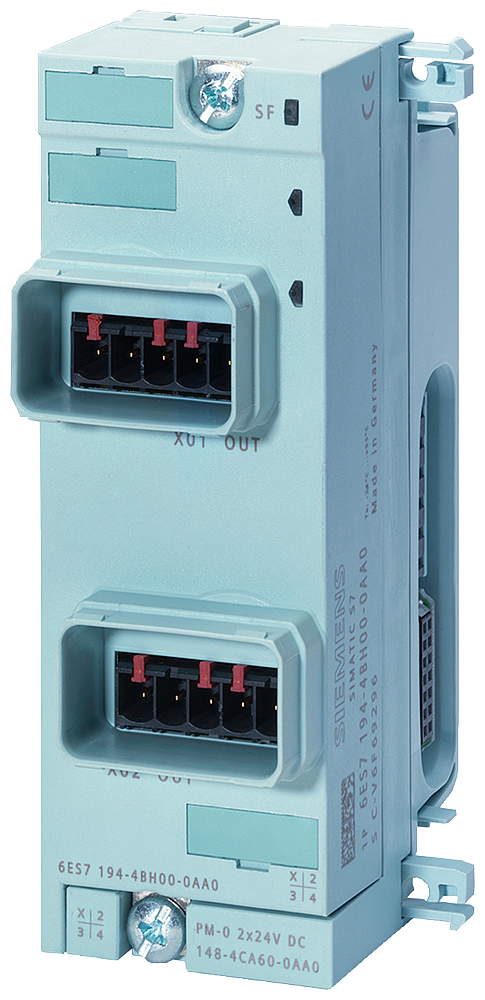

SIMATIC ET 200pro PM-O 2x24 V DC
SKU: 6ES7148-4CA60-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC DP, power module output for electronic modules ET 200 PRO PM-O, DC 2x24V, including bus module and connection module PM-O 6ES7194-4BH00-0AA0, available separately.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage, Load voltage 2L+:
Rated value (DC): 24 V.
Short-circuit protection.
Reverse polarity protection: against destruction.
Input current from load voltage 2L+, max: 3 mA.
Current carrying capacity, max: 10 A; up to 55 °C (on the internal busbars of the ET 200pro).
Typical power loss: 1.1 W.
Parameter, Diagnostics short-circuit implemented after M for 1L+.
Isolation tested with 707 V DC (type test).
IP degree of protection: IP65/67.
Width: 45 mm.
Height: 130 mm.
Depth: 35 mm.
